Wheeled Fire Extinguisher Parts

View the parts for Red Line Fire Extinguishers. Select the model you would like to see by clicking one of the following links, or scroll through the page to see all of the parts images.
MODEL CR-150-D
MODEL CR-350-D
MODEL CD-50-D AND CD-100-D
MODEL CR-350-C (POST -1988)
MODEL CR-AR-33-D
MODEL CD-100-D-1
MODEL CR-350-C (POST-1988)

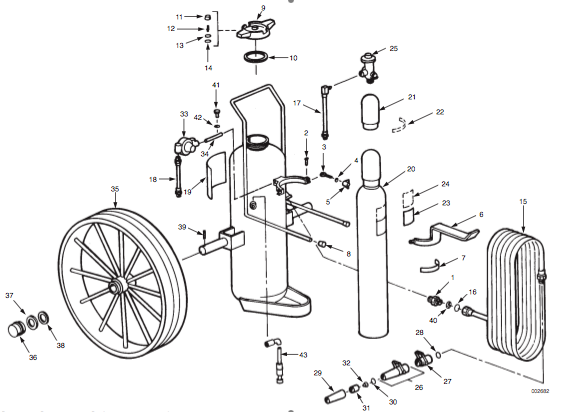

MODEL CR-150-C (PRE-1989)

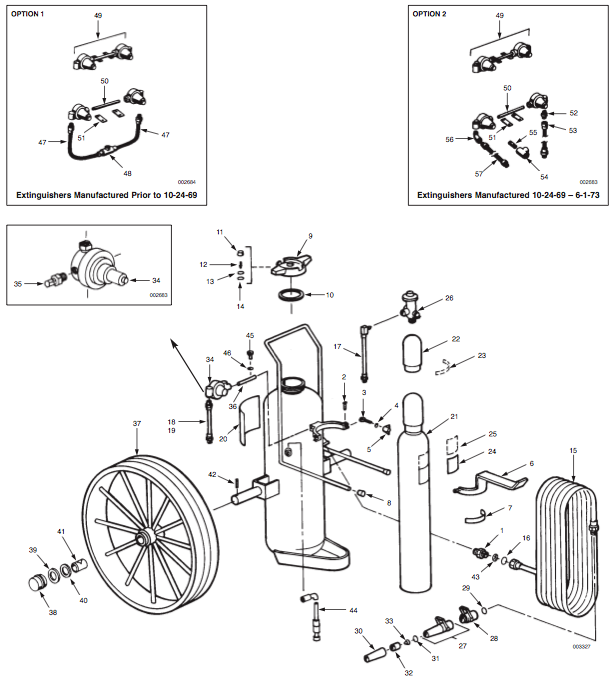

MODEL CR-350-C (PRE-1989)

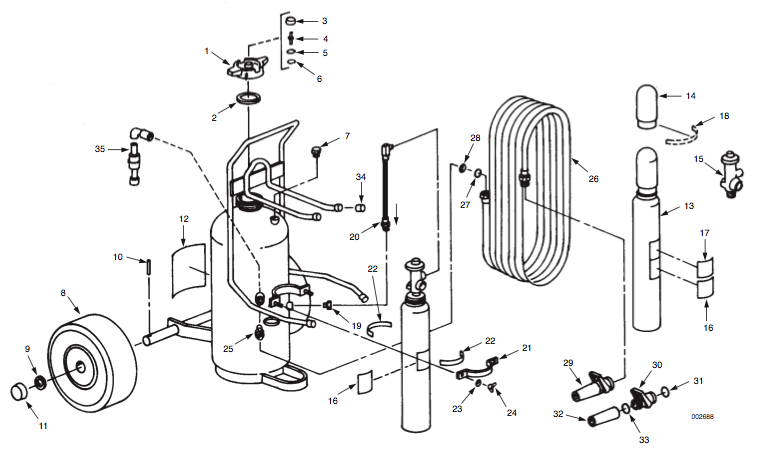

MODEL CR-150-D
WheeledFireExtinguisherPartsCR-150-D
Fig
No
Description Part No
1 Fill Cap, Indicator, w/Gasket 27335
2 Gasket, Fill Cap 3461
3 Housing, Indicator 17633
4 Stem, Indicator 27648
5 Quad Ring 17630
6 Retaining Ring 71675
7 Valve, Safety Relief 78380
8 Wheel Assembly, Semi-Pneumatic 53870
9 Washer 53541
10 Pin, Cotter 19620
11 Cap, Hub 53867
12 Plate, Instruction webpage
13 Cylinder, Nitrogen 23 cu ft, Std Valve 54694
13 Cylinder, Nitrogen 23 cu ft, Quick-Opening Valve 54695
14 Cap, Safety Shipping 73066
15 Valve Assembly, Nitrogen Cylinder webpage
16 Label, Nitrogen Cylinder, Std 53182
17 Label, Nitrogen Cylinder QO Valve 10994
18 Label, Nitrogen Cylider Cap, QO Valve 11391
Plug, Safety, QO Valve (Not Shown) 11453
Fig
No
Description Part No
19 Bushing 3/8in x 1/4in 19120
20 Hose and Adaptor Assembly 423581
21 Clamp Assembly 24877
22 Rubber Pad 29748
23 Washer 1870
24 Wingnut 78315
25 Adaptor, Tank Outlet To Hose 24931
26 Hose Assembly, 3/4in x 50ft (15m) 960
27 Gasket, Hose Coupling 670
28 Disc, Visual Hose Inspection 14236
29 Nozzle Assembly, Standard 31449
29 Nozzle Assembly, LR 31013
30 Valve, Nozzle Assembly 8101
31 Gasket, Valve to Hose 11112
32 Body, Nozzle, Standard 31448
32 Body, Nozzle, LR 31014
33 Gasket, Nozzle, Standard 8105
33 Gasket, Nozzle, LR 12734
34 Cap, Protective 4120
35 Gas Tube Assembly 24775
Tag, Inspection (Not Shown) 2364

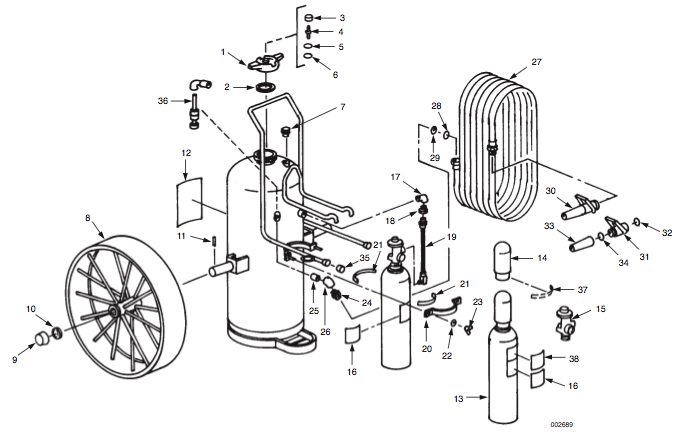

MODEL CR-350-D
WheeledFireExtinguisherPartsCR-350-D

Fig



No
Description Part No
1 Fill Cap, Indicator, w/Gasket 27335
2 Gasket, Fill Cap 3461
3 Housin, Indicator 17633
4 Stem, indicator 27648
5 Quad Ring 17630
6 Retaining Ring 71675
7 Valve, Safety Relief 78380
8 Wheel Assembly (Steel–6in Width) 31015
9 Hub Cap 56739
10 Washer (4) 67684
11 Pin, Spring (2) 8560
12 Nameplate, Replacement w/o UL webpage
13 Cylinder, Nitrogen, 55 cu ft, Std Valve 54696
13 Cylinder, Nitrogen, 55 cu ft, QO Valve 54697
14 Cap, Safety Shipping 73066
15 Valve Assembly, Nitrogen Cylinder webpage
16 Label, Nitrogen Cylinder, Std Valve 53181
16 Label, Nitrogen Cylinder, QO Valve 10994
16 Label, Nitrogen Cylinder Cap, QO Valve 11391
Plug, Safety, QO Valve (Not Shown) 11453
17 Elbow, Street 53537
18 Bushing 3/8in x 1/4in 8390
Fig
No
Description Part No
19 Hose and Adaptor Assembly 423581
20 Clamp Assembly 16359
21 Rubber Pad 29414
22 Washer 1870
23 Wingnut 78315
24 Adaptor 24930
25 Nipple, 3/4 in Extra Heavy 1978
26 Elbow 3/4 in 45° 1967
27 Hose Assembly 1in x 50ft 2271
28 Gasket, Hose Coupling 8105
29 Disc, Visual Inspection 14237
30 Nozzle Assembly, Standard, PLUS-FIFTY, FORAY 53881
30 Nozzle Assembly, Standard, Purple-K 53888
30 Nozzle Assembly, LR 25906
31 Valve, Nozzle Assembly 12727
32 Gasket, Valve to Hose 11112
33 Body, Nozzle Assembly, PLUS-FIFTY, FORAY 53882
33 Body Nozzle Assembly, Purple-K 53889
33 Body Nozzle Assembly, LR 25907
34 Gasket, Nozzle, Standard 8105
34 Gasket, Nozzle, LR 12734
35 Cap, Protective 4120
36 Gas Tube Assembly 53535
Tag, Inspection (Not Shown) 2364

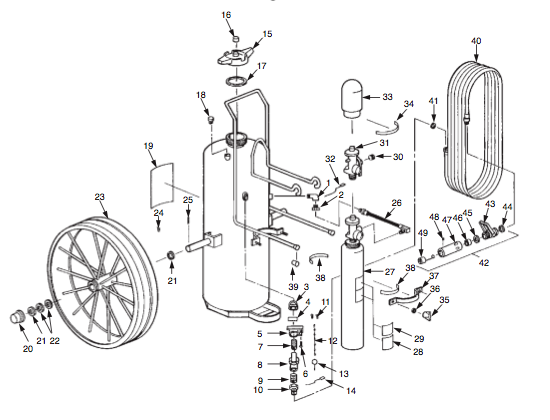

MODEL CR-AR-33-D
 WheeledFireExtinguisherPartsCR-AR-33-D
Fig
No
Description Part No
1 Elbow, Street, 3/8in x 90° 53537
2 Bushing, Reducing, 3/8 x 1/4 in 8390
3 Elbow, 3/4 in x 45° 1967
4 Nameplate, Agent Valve 69887
5 Bracket Nameplate (w/Speed Nut) 57555
6 Scre, Machine 57554
7 Nipple, 3/4in 1979
8 Valve, Butterfly 3/4in 55340
9 Nipple, Close, 3/4in 1979
10 Adaptor 24930
11 Rivet, Pop (2) 25540
12 Chain, Ring Pin 24930
13 Pin, Ring 596
14 Seal, Visual Inspection 197
15 Cap, Fill, Assembly 67669
16 Cap, Indicator 17633
17 Gasket 67635
18 Relief, Safety 78380
19 Nameplate, Replacement (2) webpage
20 Cap, Hub (2) 56739
21 Washer (4) 67685
22 Washer (4) 67684
23 Wheel, Wide (2) 31015
23 Wheel, Rubber Tire (2) 31012
24 Fitting, Alemite (2) 1033
25 Pin, Spring (2) 6560
Fig
No
Description Part No
26 Nitrogen Hose Assembly 423581
27 Nitrogen Cylinder Assembly 54694
27 Nitrogen Cylinder Assembly, QO Valve 53882
28 Label, Nitrogen Cylinder 53182
29 Label, Nitrogen Cylinder, QOValve 10994
30 Safety Plug, Nitrogen Cylinder, QO Valve 11453
31 Valve Nitrogen Cylinder webpage
32 Seal Visual Inspection 197
33 Cap, Cylinder Shipping 73066
34 Label, Nitrogen Cylinder Cap, QO Valve 11391
35 Wingnut (2) 78315
36 Washer (2) 1870
37 Clamp, Cylinder, Front 24877
38 Pad, Clamp Arm (2) 29748
39 Cap (2) 4120
40 Hose, 1in x 50ft (15m) 2271
41 Gasket, Hose 8105
42 Nozzle Assembly 53402
43 Valve, Ball 12727
44 Gasket 12734
45 Gasket 8105
46 Orifice, Metering 53405
47 Body, Nozzle 53663
48 Screw, Set 53666
49 Screen Assembly 53410
Tag, Inspection (Not Shown) 2364

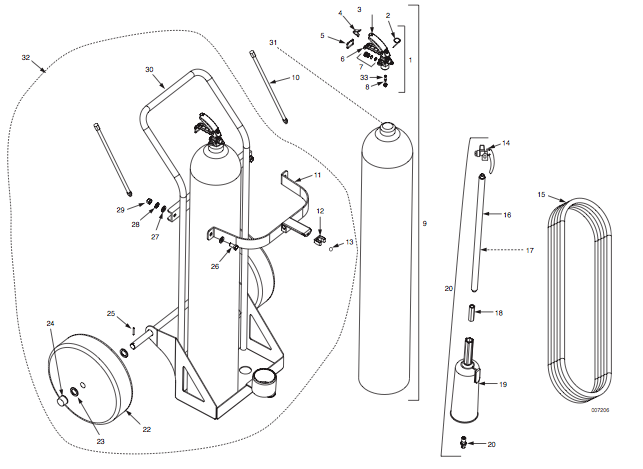

MODEL CD-100-D-1
WheeledFireExtinguisherPartsCD-100-D-1
Fig
No
Description Part No
1 Valve Assembly (no pick-up tube) 429238
2 Pull Pin 423624
3 Lever, Chrome 429243
4 Leaf Spring 429162
5 Lever Catch 429244
6 Handle, Chrome 432776
7 Safety Plug Kit 434607
8 Plunger Stem 429154
9 50lb (22.7kg) CO2 Shipping Assembly 552314
10 20in (50.8cm) Hose Assembly 552356
11 Bracket–Painted 552311
12 Hose Clip 552309
13 Rivet–Stainless Steel 552307
14 Discharge Valve Sub-Assembly 552719
15 Hose Assembly, 40ft (12.2m) 552302
16 Rubber Tubing 552721
17 Discharge Pipe 552720
Fig
No
Description Part No
18 Horn Adaptor 222724
19 Discharge Horn 429197
20 Discharge Nozzle 552723
21 Discharge Valve/Horn Assembly 429249
22 16in (40.6cm) Wheel 53870
23 Washer 53541
24 Hub Cap 53867
25 Roll Pin 69855
26 1/2-13 hex head Bolt 16117
27 1/2 Flat Washer 17486
28 1/2 Lockwasher 16121
29 1/2–13 Hex Head Bolt 16119
30 100lb (45.4kg) CO2Cart Only 552313
31 Pick-Up Tube 552336
32 100lb (45.4kg) CO2 Cart Assembly (Excluding CO2 Cylinder) 53327
33 O-Ring, Valve Stem 429159
Safety Plug Kit 429515

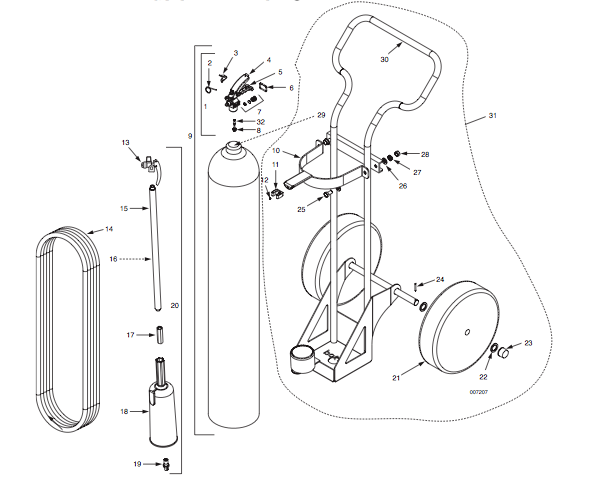

MODEL CD-50-D-1
WheeledFireExtinguisherPartsCD-50-D-1
Fig
No
Description Part No
1 Valve Assembly (no pick-up tube) 429238
2 Pull Pin 423624
3 Leaf Spring 429162
4 Lever, Chrome 429243
5 Handle, Chrome 432776
6 Lever Catch 429244
7 Burst Disc 434607
8 Plunger Stem 429154
9 50lb (22.7kg)  CO2 Shipping Assembly 552314
10 Bracket–Painted 552331
11 Hose Clip 552309
12 Rivet–Stainless Steel 552307
13 Discharge Valve Sub-Assembly 552719
14 Hose Assembly, 15ft (4.6m) 552334
15 Rubber Tubing 552721
16 Discharge Pipe 552720
17 Horn Adaptor 552724
Fig
No
Description Part No
18 Discharge Horn 429197
19 Discharge Nozzle 552723
20 Discharge Valve/Horn Assembly 429249
21 16in (40.6cm) Wheel 53870
22 Washer 53541
23 Hub Cap 53867
24 Roll Pin 69855
25 1/2-13 Hex Head Bolt 16117
26 1/2 Flat Washer 17486
27 1/2 Lockwasher 16121
28 1/2-13 Hex Nut 16119
29 Pickup Tube 552336
30 50lb (22.7 kg) CO2 Cart Only 552332
31 50lb (22.7kg) CO2 Cart Assembly (Excluding CO2 Cylinder) 553326
32 O-Ring, Valve Stem 429159
Safety Plug Kit 429515

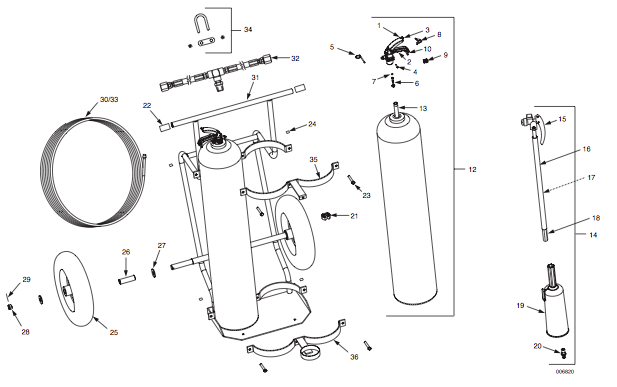

MODEL CD-50-D AND CD-100-D
WheeledFireExtinguisherPartsCD-50-DANDCD-100-D
Fig
No
Description Part No
1 Valve Assembly (less pick-up tube) 429238
2 Handle, Chrome 429242
3 Lever, Chrome 429243
4 Rivet 429165
5 Pull Pin 423624
6 Plunger Assembly 429154
7 O-Ring, Stem 429159
8 Leaf Spring 429162
9 Burst Disc 434607
10 Wire Catch 429244
11 Visual Seal (Not Shown) 25940
12 50lb CO2 Cylinder N/A
13 Pick-up Tube 429247
14 Discharge Valve/Hose Assembly 429249
15 Discharge Valve Sub-Assembly 552721
16 Rubber Tubing 552722
17 Discharge Pipe 552720
18 Horn Adaptor 552724
19 Discharge Horn 429197
20 Dishcarge Nozzle 552723
21 Hose Clip 552309
Fig
No
Description Part No
22 Handle Grip N/A
23 Hex-Head Cap Screw N/A
24 Lock Nut N/A
25 Rubber Tire 16in (41cm) N/A
26 Wheel Bushing N/A
27 Washer N/A
28 Slotted Hex Nut N/A
29 Cotter Pin N/A
30 Hose Assembly, 15ft (4.6m), CD-50-D* 552334
31 Cart Sub-Assembly, CD-50-D N/A
31 Cart Sub-Assembly, CD-100-D N/A
32 Manifold Assembly, CD-100-D N/A
33 Hose Assembly, 40ft (12.2m), CD-100-D 429273
34 “U” Clamp and Nuts, CD-100-D N/A
35 Top-Front Bracket, CD-50-D N/A
35 Top-Front Bracket, CD-100-D N/A
36 Bottom Front Bracket, CD-50-D N/A
36 Bottom Front Bracket, CD-100-D N/A
37
Non-UL Replacement Nameplate
(Not Shown)
webpage
Safety Plug Kit 429515
MODEL CR-150-C (POST-1988)

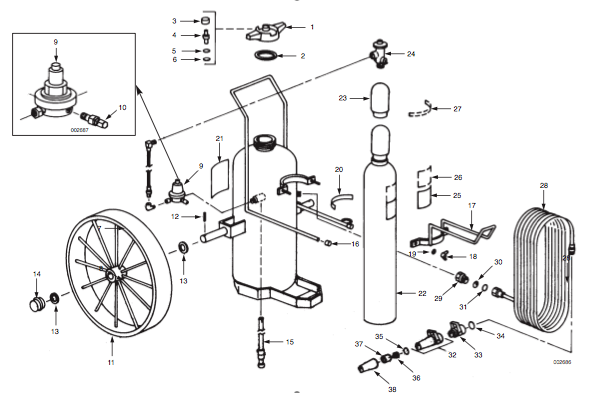

WheeledFireExtinguisherPartsCR-150-C(post1988)
Fig
No
Description Part No
1 Fill Cap, Indicator 27335
2 Gasket 3461
3 Indicator Cap 17633
4 Indicator Stem 27648
5 Quad Ring 17630
6 Retaining Ring 71675
7 Nitrogen Hose Assembly 423585
8 Street Elbow 78409
9 Pressure Regulator Replacement Kit 419327
10 Pressure Relief Valve 78704
11 Wheel, Steel, Standard 29508
11 Wheel, Wide, WW 31015
11 Wheel, Rubber Coated 31012
12 Spring Pin 8560
13 Washer 67684
14 Hub Cap 56739
15 Gas Tube (without Coupling) 78713
16 Cap 4120
17 Clamp/Hose Hanger 78328
18 Wing Nut 78315
19 Washer 1870
20 Rubber Pad 29414
21 Nameplate, Replacement w/o UL webpage
22 Nitrogen Cylinder Assembly 24707
22 Nitrogen Cylinder Assembly, QO Valve 31060
Fig
No
Description Part No
23 Shipping Cap, Nitrogen Cylinder 73066
24 Valve, Nitrogen Cylinder webpage
25 Label, Nitrogen Cylinder 3477
26 Label, Nitrogen Cylinder, QO Valve 10994
27 Label, Cylinder Cap, QO Valve 11391
28 Hose, 3/4in x 50ft (15m), Standard 960
28 Hose, 3/4in x 100ft (30m), Standard 4761
28 Hose, 3/4in x 50ft (15m), LT 2272
28 Hose, 3/4in x 100ft (30m), LT 26299
29 Adaptor, FORAY, PLUS-FIFTY, Purple-K, LR 24931
30 Visual Hose Inspection Disc 14236
31 Gasket 670
32 Nozzle Assembly, FORAY, PLUS-FIFTY 29506
32 Nozzle Assembly, Purple-K 31449
32 Nozzle Assembly, LR 31013
33 Ball Valve 8101
34 Gasket, Valve to Hose 11112
35 Gasket, Nozzle, Standard 8105
35 Gasket, Nozzle, LR 12734
36 Tip, Nozzle 12703
37 Sleeve, Nozzle 8103
38 Body, Nozzle, Except LR & Purple-K 29507
38 Body, Nozzle, LR 31014
38 Body, Nozzle, Purple-K 31448
MODEL CR-350-C (POST-1988)
 Top
WheeledFireExtinguisherPartsCR-150-C(post1988)
Fig
No
Description Part No
1 Fill Cap, Indicator 27335
2 Gasket 3461
3 Indicator Cap 17633
4 Indicator Stem 27648
5 Quad Ring 17630
6 Retaining Ring 71675
7 Nitrogen Hose Assembly 423585
8 Street Elbow 78409
9 Pressure Regulator Replacement Kit 419327
10 Pressure Relief Valve 78704
11 Wheel, Steel, Standard 29508
11 Wheel, Rubber Coated 31016
12 Spring Pin 8560
13 Washer 67684
14 Hub Cap 56739
15 Gas Tube (without Coupling) 77912
16 Cap 4120
17 Clamp/Hose Hanger 78362
18 Wing Nut 78315
19 Washer 1870
20 Rubber Pad 79183
21 Nameplate, Replacement w/o UL webpage
22 Nitrogen Cylinder Assembly 24708
22 Nitrogen Cylinder Assembly, QO Valve 31061
23 Shipping Cap, Nitrogen Cylinder 73066
Fig
No
Description Part No
24 Valve, Nitrogen Cylinder webpage
25 Label, Nitrogen Cylinder 3391
26 Label, Nitrogen Cylinder, QO Valve 10994
27 Label, Cylinder Cap, QO Valve 11391
28 Hose, 1in x 50ft (15m), Standard 2271
28 Hose, 1in x 100ft (30m), Standard 10930
28 Hose, 1in x 50ft (15m), LT 2133
28 Hose, 1in x 100ft (30m), LT 10931
29
Adaptor, FORAY, PLUS-FIFTY,
Purple-K, LR
78316
29 Adaptor, Purple-K except LR 24930
30 Visual Hose Inspection Disc 14237
31 Gasket 8105
32 Nozzle Assembly, FORAY, PLUS-FIFTY 31922
32 Nozzle Assembly, Purple-K 31547
32 Nozzle Assembly, LR 25906
33 Ball Valve 12727
34 Gasket, Valve to Hose 8105
35 Gasket, Nozzle, Standard 8105
35 Gasket, Nozzle, LR 12734
36 Tip, Nozzle 12707
37 Sleeve, Nozzle 8103
38 Body, Nozzle, Except LR 29507
38 Body, Nozzle, LR 25907
38 Body, Nozzle, Purple-K 31548
 MODEL CR-150-C (PRE-1989)
 Top
WheeledFireExtinguisherPartsCR-150-Cpre1989
Fig
No
Description Part No
1 Adaptor, Tank Outlet to Hose 3902
2 Rivet, Eyebolt 15392
3 Eyebolt, Clamp Ring 3358
4 Washer 1870
5 Wing Nut, Eyebolt 78315
6 Clamp Ring ‘B’ w/Hose Support 78260
7 Rubber Pad 29414
8 Confiner Tip 4120
9 Fill Cap, Indicator, w/ Gasket 27335
10 Gasket, Fill Cap 3461
11 Housing, Indicator 17633
12 Stem indicator 27648
13 Quad Ring 17630
14 Retaining Ring 71675
15 Hose Assembly, 3/4in x 50ft 960
16 Gasket, Hose Coupling 670
17 Hose and Adaptor Assembly, 3/8in 423581
18 Hose Assembly, 3/8 in, Regulator To Tank 8750
19 Nameplate, Replacement w/o UL webpage
20 Nitrogen Cylinder Assembly, 110-B 24707
20 Nitrogen Cylinder Assembly, 110-B, QO Valve 31060
21 Cap, Nitrogen Cylinder 73066
22 Label, Nitrogen Cylinder Cap, QO Valve 11391
23 Label, Nitrogen Cylinder, Standard 3477
24 Label, Nitrogen Cylinder, QO Valve 10994
25 Valve Assembly, Nitrogen Cylinder, Standard &QO webpage
Fig
No
Description Part No
26 Nozzle Assembly, LR-36 29506
27 Valve, Nozzle Assembly 31449
28 Gasket, Valv to Hose 31013
29 Body, Nozzle, Standard Cone Tip, Pre-1976 29507
29 Body, Nozzle, Purple-K Only, 1976-1988 31448
29 Body, Nozzle Assembly, LR-36 31014
30 Gasket, Nozzle Assembly 8105
30 Gasket, Nozzle Assembly, LR-36 12734
31 Sleeve, Nozzle Assembly, Standard Cone Tip, Pre-1976 8103
32 Tip Nozzle Assembly, Std Cone Tip, pre-1976 12703
33 Regulator Replacement Kit 419327
34 Support, Regulator 74265
35 Wheel Assembly, 3in Wide, Steel, Red 29508
36 Hub Cap 56739
37 Washer 67684
38 Washer N/A
39 Pin, Spring 8560
40 Visual Hose Inspection Disc 14236
41 Cap Screw, Regulator Mounting 16301
42 Lockwasher, Regulator Mounting 1133
43 Gas Tube, Assembly 15469
Strap, Regulator Mounting (Not Shown) 3373
Lockwasher, Regulator Mounting (2) (Not Shown) 14235
Hex Nut, Regulator Mounting (2) (Not Shown) 14234
MODEL CR-350-C (PRE-1989)
 Top
WheeledFireExtinguisherPartsCR-350-Cpre1989
Fig
No
Description Part No
1 Adaptor, Tank Outlet to Hose 7837
2 Rivet, Eyebolt 15392
3 Eyebolt, Clamp Ring 3358
4 Washer 1870
5 Wing Nut, Eyebolt 78315
6 Clamp Ring ‘B’ w/Hose Support 4008
7 Rubber Pad 79183
8 Cofiner Tip 4120
9 Fill Cap, Indicator, w/Gasket 27335
10 Gasket, Fill Cap 3461
11 Housing, Indicator 17633
12 Stem, Indicator 27648
13 Quad Ring 17630
14 Retaining Ring 71675
15 Hose Assembly, 1in x 50ft 2271
16 Gasket, Hose Coupling 8105
17 Hose and Adaptor Assembly, 3/8in 423581
18 Hose Assembly, 3/8in, Regulator to Tank 25462
19 Adaptor union, Swivel 25582
20 Nameplate, Replacement w/o U.L. Manifest webpage
21 Nitrogen Cylinder Assembly, 220-B 24708
21 Nitrogen Cylinder Assembly, 220-B, QO Valve 31061
22 Cap, Nitrogen Cylinder 73066
23 Label, Nitrogen Cylinder Cap, QO Valve 11391
24 Label, Nitrogen Cylinder, Standard 3391
25 Label, Nitrogen Cylinder, QO Valve 10994
26 Valve Assembly, Nitrogen Cylinder, Standard & QO Valve webpage
27 Nozzle Assembly, Cone Tip, PLUS-FIFTY, Pre-1976 31922
27 Nozzle Assembly, Purple-K, 1976-1988 31547
27 Nozzle Assembly, LR-44 25906
28 Valve, Nozzle Assembly, Standard 12727
28 Valve, Nozzle Assembly, LR-44 10057
29 Gasket, Valve to Hose 8105
30 Body, Nozzle Assembly, Standard 29507
30 Body, Nozzle Assembly, Purple-K 31548
30 Body, Nozzle Assembly, LR-44 25907
31 Gasket, Nozzle Assembly, Std 8105
Fig
No
Description Part No
31 Gasket, Nozzle Assembly, LR-44 12734
32 Sleeve, Nozzle Assembly, Cone Tip, Pre-1976 8103
33 Tip, Nozzle Assembly, Cone Tip, Pre-1976 12707
34 Regulator Replacement Kit 419327
35 Pressure Relief Valve 78704
36 Support, Regulator 56077
37 Wheel Assembly, Steel, Red 25908
38 Hub Cap 56739
39 Washer 67684
40 Washer N/A
41 Bearing Assembly, Pre-1982 2455
41 Bearing Assembly, Post-1982 68306
42 Pin, Spring 8560
43 Visual Hose Inspection Disc 14237
44 Gas Tube Assembly 77912
45 Cap Screws, Regulator Mounting 16301
46 Lockwasher, Regulator Mounting 1133
Strap, Regulator Mounting (Not Shown) 3373
Lockwasher, Regulator Mounting (2)
(Not Shown)
14235
Hex Nut, Regulator Mounting (2) (Not Shown) 14234
47 Hose Assembly, Regulator To Tank (2) (Option 1) 8748
48 Tee (Option 1) 3364
49 Regulator Assembly (Option 1) 423456
49 Regulator Assembly (Option 2), Replacement 423456
50 Nipple Assembly (Option 1) 3972
50 Nipple Assembly (Option 2) 3972
51 Mounting Strap (Option 1) 3373
51 Mounting Strap (Option 2) 3373
52 Adaptor, Nipple (Option 2) 908
53
Hose Assembly, 3/8in Nitrogen, HP
(Option 2)
65049
54 Tee, 3/8in NPT (Option 2) 942
55 Nipple, 3/8in NPT (Option 2) 302
56 Elbow, 1/4in x 45 Street (Option 2) 16578
57
Hose Assembly, 3/8in Nitrogen, LP
(Option 2)
8750
