Wheeled Extinguisher & Large Dry Chemical System Parts

WheeledExtinguisher&LargeDryChemicalSystemPartsNitrogenCylinderValveParts-Standard&Quick-Opening

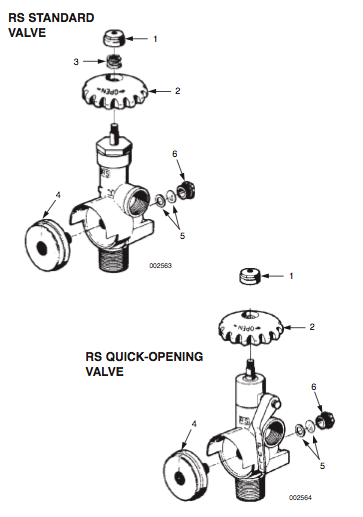

Nitrogen Cylincer Valve Parts–Standard & Quick-Opening (QO)
Fig No
DescriptionPart No
—Valve Assembly, Std, 22/55/110/220 (RS)78706
—Valve Assembly, QO, 22/55/110/220 (RS)78705
—Valve Assembly, QO, 300/400 (RS)419100
1Nut, Handwheel78710
2Handwheel78708
3Spring, Std Valve Only79139
4Gauge78707
5Safety Disc & Washer78711
6Plug, Safety Relief78709
WheeledExtinguisher&LargeDryChemicalSystemPartsNitrogenCylinderValveAccessories
Nitrogen Cylinder Valve Accessories
Fig No
DescriptionPart No
1Shipping Cap, Nitrogen Cylinder73066
2Label, Shipping Cap11391
3Plug, Safety Shipping11453
4Inspection Seal15999
WheeledExtinguisher&LargeDryChemicalSystemPartsPneumaticActuatorParts(Quick-OpeningValveOnly)

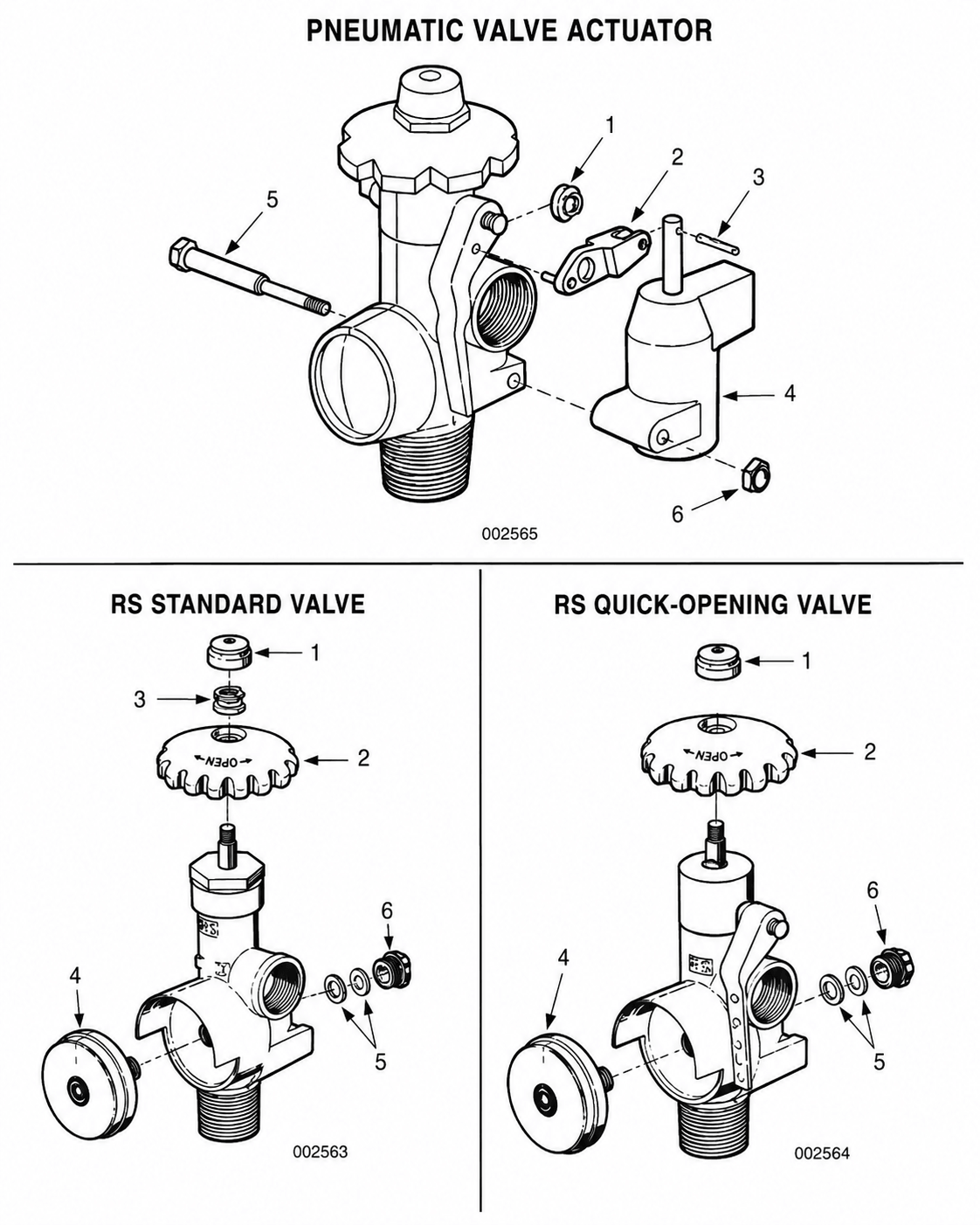

Pneumatic Actuator Parts (Quick-Opening Valve Only)

Fig
No
DescriptionPart No
—Actuator Assembly, QO Valve11160
1Crescent Ring11322
2Actuator Arm11389
3Roll Pin11172
4Body, Actuator11161
5Anchor Stud11171
6Cap Nut11173
