Select the model you would like to see by clicking one of the following links, or scroll through the page to see all of the parts images.
23 cu ft Nitrogen Cylinder »
110 cu ft Nitrogen Cylinder »
55 cu ft Nitrogen Cylinder »
125/150 lb Wheeled/Stationary Dry Chemical Extinguishers

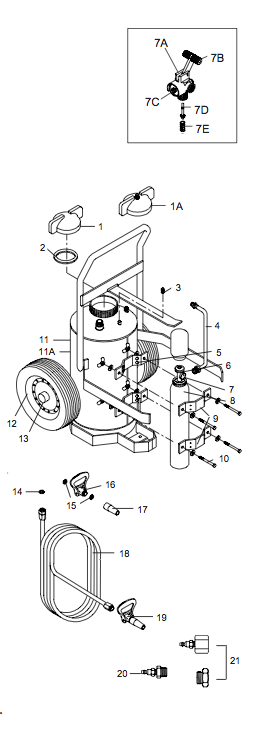

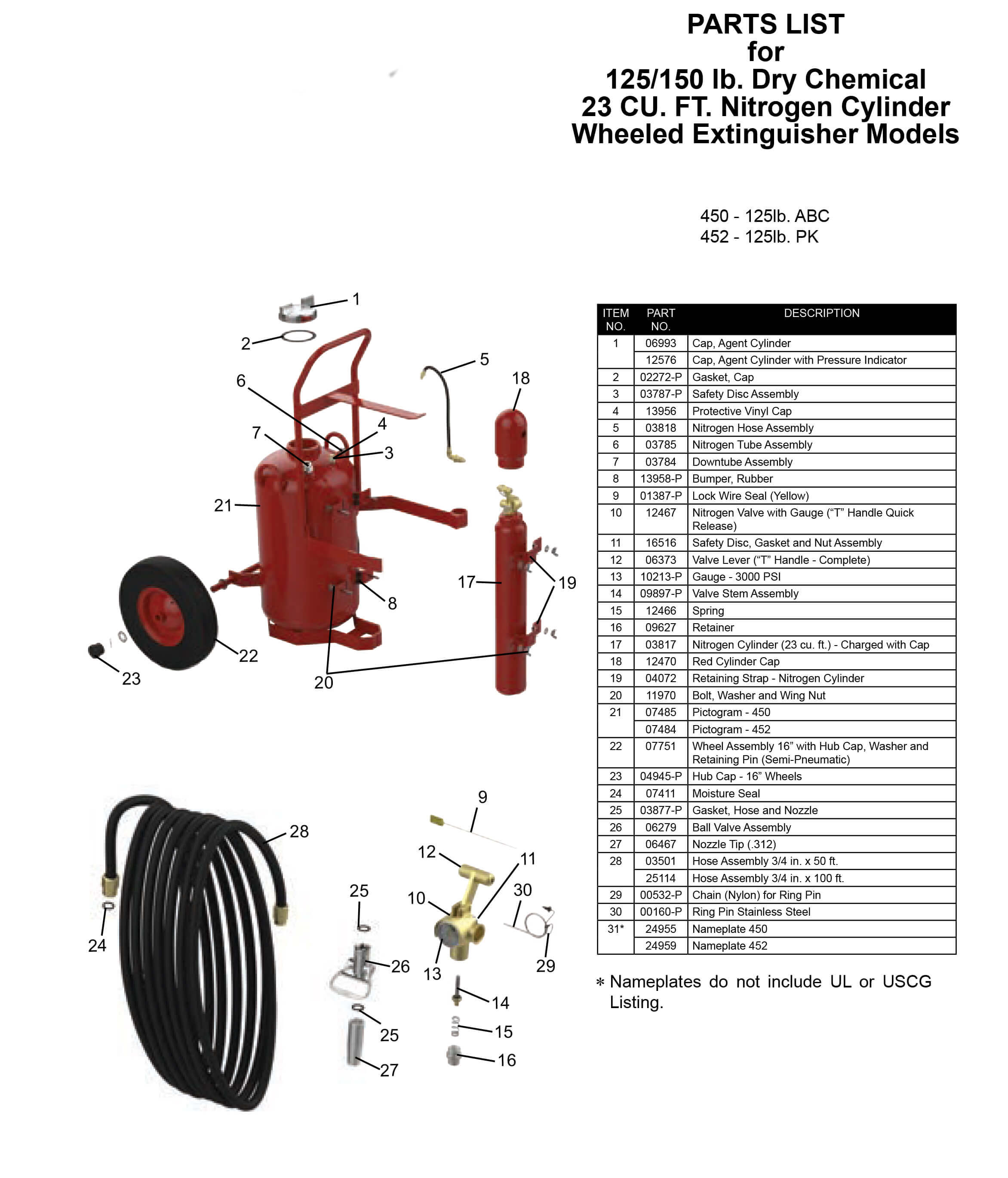

23 cu ft Nitrogen Cylinder
| Wheeled Models |
450 |
125 lb ABC |
| 451 |
150 lb Regular |
| 452 |
125 lb Purple K |
| Stationary Models |
481 |
125 lb ABC |
| 482 |
150 lb Regular |
| 483 |
125 lb Purple K |
| Fig No |
Description |
Part No |
| 1 |
Cap (Chrome Plated Brass), Agent Cylinder |
6993 |
| 1A |
Cap (Chrome Plated Brass, Agent Cylinder w/Indicator |
12576 |
| 2 |
Gasket, Cap |
2272 |
| 3 |
Safety Disc Assembly |
3787 |
| 4 |
Nitrogen Hose Assembly |
3818 |
| 5 |
Bumper, Rubber |
1990 |
| 6 |
Lead Wire Seal for Nitrogen Valve |
4195 |
| 7 |
Nitrogen Valve (Hand Wheel) w/Gauge |
2233 |
| 7A |
Nitrogen Valve (Quick Release) w/Gauge |
12467 |
| 7B |
Valve Lever ("T" Handle w/Roll Pin & Knobs) |
6373 |
| 7C |
3000 psi Gauge |
10213 |
| 7D |
Valve Stem Assembly |
9897 |
| 7E |
Spring |
0501 |
| 8 |
Nitrogen Cylinder, 23 cu ft, Charged, Including Valve, Gauge, & Protective Cap |
3817 |
| 9 |
Retaining Strap - Nitrogen Cylinder |
11969 |
| 10 |
Bolt, Washer, & Wing Nut |
11970 |
| 11 |
Nameplate (Mylar Label) - Non UL, Specify Model No of the Extinguisher |
|
| 11A |
Pictogram - 450 |
7485 |
| Pictogram - 451 452 |
7484 |
| 12 |
Wheel Assembly, 16" w/Hub Cap, Washer, & Retaining Pin (Semi-Pneumatic) |
7751 |
| 13 |
Hub Cap |
4945 |
| 14 |
Moisture Seal |
7411 |
| 15 |
Gasket, Hose/Nozzle |
3877 |
| 16 |
Ball Valve Assembly |
6279 |
| 17 |
Nozzle Tip (.312) |
6467 |
| 18 |
Hose Assembly, 50 ft |
3501 |
| 19 |
Nozzle Assembly (Ball Valve & Tip) |
6717 |
| 20 |
Hydrotest Adapter (Cylinder) |
3610 |
| 21 |
Hydrotest Adapter (Hose) - Male Plug & Female Coupling |
5720 |
| -- |
Visilox Lubricant (5 oz Tube) |
6247 |

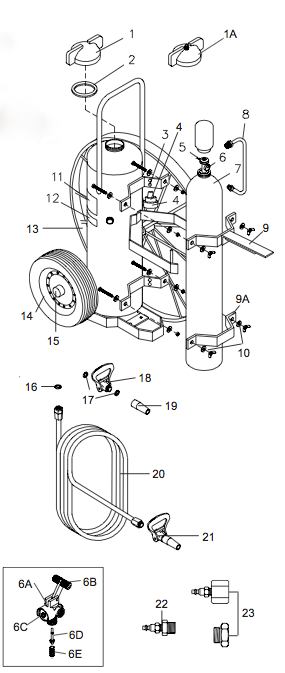

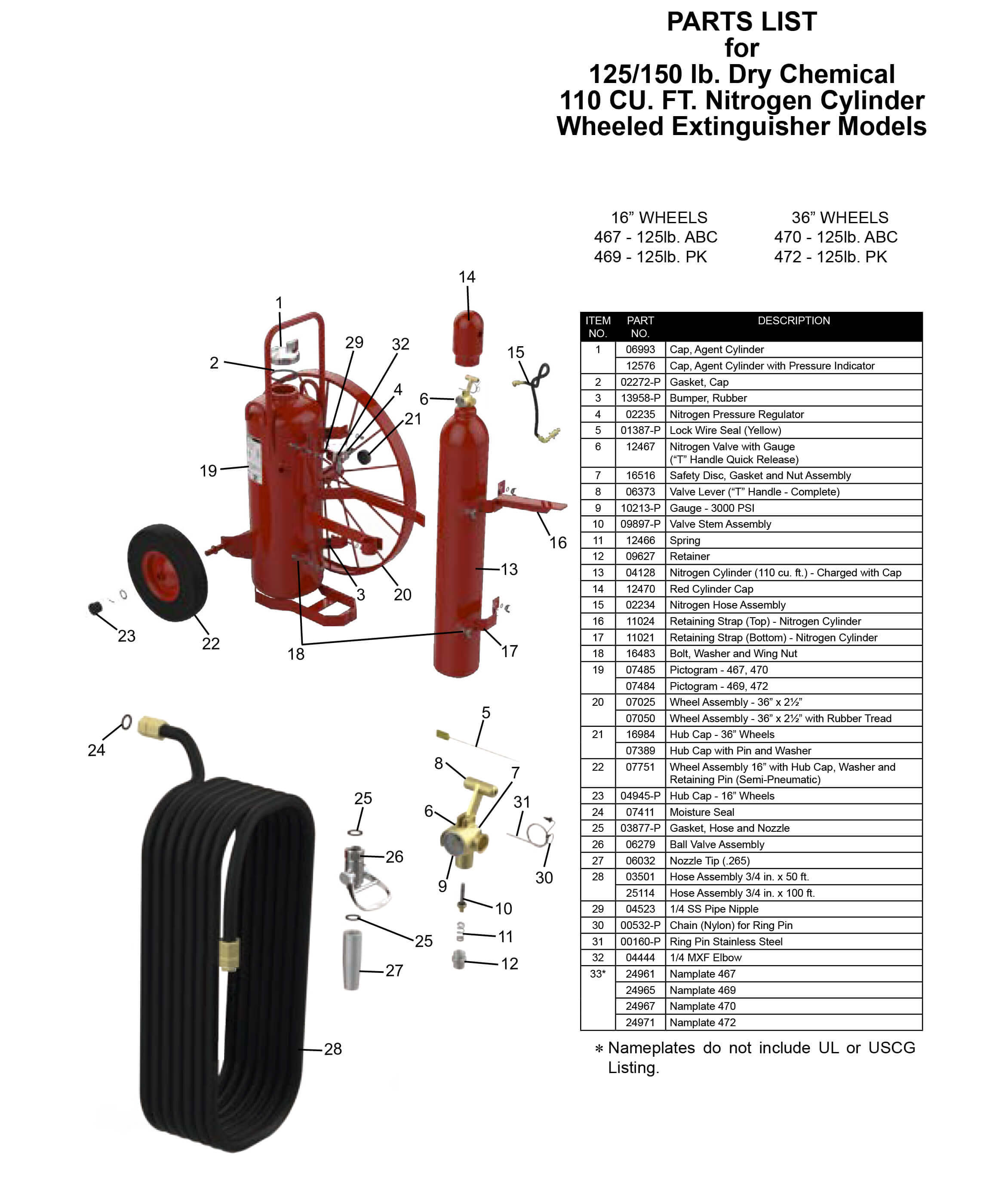

110 cu ft Nitrogen Cylinder
| Wheeled Models |
467 |
125 lb ABC, 16" Wheels |
| 468 |
150 lb Regular, 16" Wheels |
| 469 |
125 lb Purple K, 16" Wheels |
| 470 |
125 lb ABC, 36" Wheels |
| 471 |
150 lb Regular, 36" Wheels |
| 472 |
125 lb Purple K, 36" Wheels |
| Stationary Models |
485 |
125 lb ABC |
| 486 |
150 lb Regular |
| 487 |
125 lb Purple K |
| Fig No |
Description |
Part No |
| 1 |
Cap (Chrome Plated Brass), Agent Cylinder |
16993 |
| 1A |
Cap (Chrome Plated Brass), Agent Cylinder w/Indicator |
12576 |
| 2 |
Gasket, Cap |
2272 |
| 3 |
Bumper, Rubber |
1990 |
| 4 |
Nitrogen Pressure Regulator |
2235 |
| 5 |
Lead Wire Seal for Nitrogen Valve |
4195 |
| 6 |
Nitrogen Valve (Hand Wheel) w/Gauge |
2233 |
| 6A |
Nitrogen Valve (Quick Release) w/Gauge |
12467 |
| 6B |
Valve Lever ("T" Handle w/Roll Pin & Knobs) |
6373 |
| 6C |
3000 psi Gauge |
10213 |
| 6D |
Valve Stem Assembly |
9897 |
| 6E |
Spring |
0501 |
| 7 |
Nitrogen Cylinder 110 cu ft, Charged, Including Valve, Gauge, & Protective Cap |
4128 |
| 8 |
Nitrogen Hose Assembly |
2234 |
| 9 |
Retaining Strap (Top) w/Hose Hanger - Nitrogen Cylinder |
06057 |
| 9A |
Retaining Strap (Bottom) - Nitrogen Cylinder |
12021 |
| 10 |
Bolt, Washer, and Wing Nut |
12015 |
| 11 |
Pictogram - 467, 470, 485 |
7485 |
| Pictogram - 468, 469, 471, 472, 486, 487 |
7484 |
| 12 |
Nameplate (Myer Label) - Non UL, Specify Model No of the Extinguisher |
|
| 13 |
Wheel Assembly - 36" x 2½" |
7025 |
| -- |
Hub Cap - 36" Wheels |
7023 |
| 14 |
Wheel Assembly, 16" w/Hub Cap, Washer, & Retaining Pin (Semi-Pneumatic) |
7751 |
| 15 |
Hub Cap |
4945 |
| 16 |
Moisture Seal |
7411 |
| 17 |
Gasket, Hose/Nozzle |
3877 |
| 18 |
Ball Valve Assembly |
6279 |
| 19 |
Nozzle Tip (.265) |
6032 |
| 20 |
Hose Assembly, 50 ft |
3501 |
| 21 |
Nozzle Assembly (Ball Valve & Tip) |
7574 |
| 22 |
Hydrotest Adapter (Cylinder) |
4892 |
| 23 |
Hydrotest Adapter (Hose) - Male Plug & Female Coupling |
25720 |
| -- |
Visilox Lubricant (5 oz Tube) |
6247 |
300/350 lb Wheeled/Stationary Dry Chemical Extinguishers

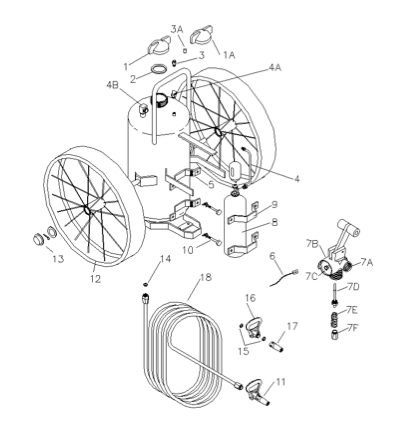

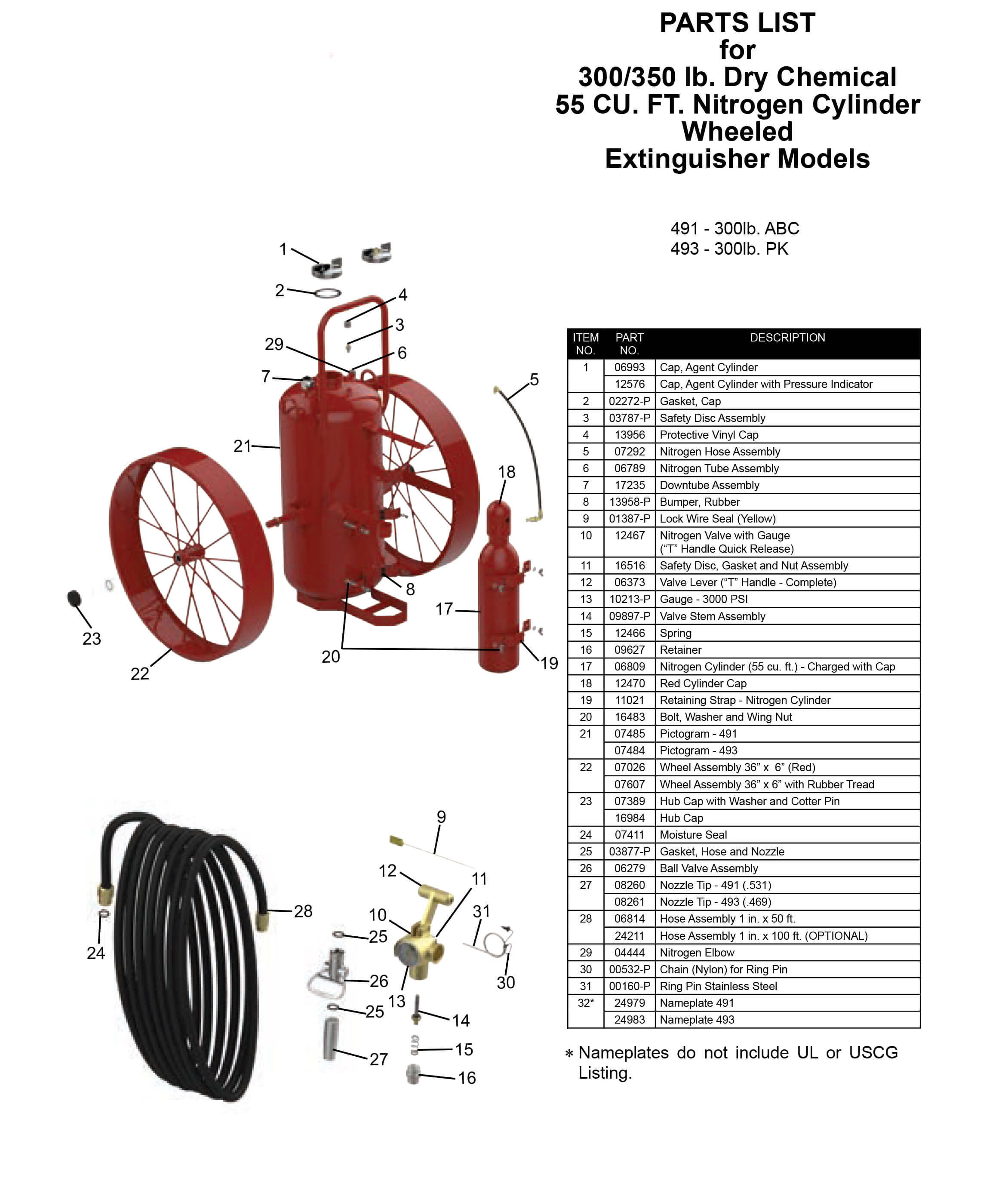

55 cu ft Nitrogen Cylinder
| Wheeled Models |
491 |
300 lb ABC |
| 492 |
350 lb Regular |
| 493 |
300 lb Purple K |
| Stationary Models |
464 |
300 lb ABC |
| 466 |
300 lb Purple K |
| Fig No |
Description |
Part No |
| 1 |
Cap, Agent Cylinder |
06993 |
| 1A |
Cap, Agent Cylinder w/Pressure Indicator |
12576 |
| 2 |
Gasket, Cap |
02272 |
| 3 |
Safety Disc Assembly - 491, 492, 493 |
03787 |
| Safety Disc Assembly - 464, 466 |
07665 |
| 3A |
Protective Vinyl Cap |
13956 |
| 4 |
Nitrogen Hose Assembly |
07292 |
| 4A |
Nitrogen Tube Assembly |
06789 |
| 5 |
Bumper, Rubber |
13958 |
| 6 |
Lock Wire Seal (Yellow) |
01387 |
| 7A |
Safety Disc Assembly |
16516 |
| 7B |
Nitrogen Valve ("T" Handle - Complete) |
12467 |
| 7C |
Gauge - 3000 psi |
10213 |
| 7D |
Valve Stem Assembly |
09897 |
| 7E |
Spring |
12466 |
| 7F |
Retainer |
09627 |
| 8 |
Nitrogen Cylinder (55 cu ft) - Charged, w/Valve, Gauge, & Cap |
06809 |
| 9 |
Retainer Strap - Nitrogen Cylinder |
11021 |
| 10 |
Bag Assembly (Bolt, Washers, Hex Nut, Wing Nut) |
16483 |
| 11 |
Nozzle Assembly (Ball Valve & Tip) - 491, 492, 464, 465 |
07385 |
| Nozzle Assembly (Ball Valve & Tip) - 493, 466 |
07387 |
| 12 |
Wheel Assembly 36" x 6" (Red) |
07026 |
| -- |
Wheel Assembly 36" x 6" w/Rubber Tread |
07607 |
| 13 |
Hub Cap w/Washer & Cotter Pin |
07389 |
| 14 |
Moisture Seal |
07411 |
| 15 |
Gasket, Hose & Nozzle |
03877 |
| 16 |
Ball Valve Assembly |
06279 |
| 17 |
Nozzle Tip - 491, 492, 464, 465 (.531) |
08260 |
| Nozzle Tip - 493, 466 (.469) |
08261 |
| 18 |
Hose Assembly - 1" x 50" |
06814 |
