View the parts for Sentry Dry Chemical Extinguishers. Select the model you would like to see by clicking one of the following links, or scroll through the page to see all of the parts images.

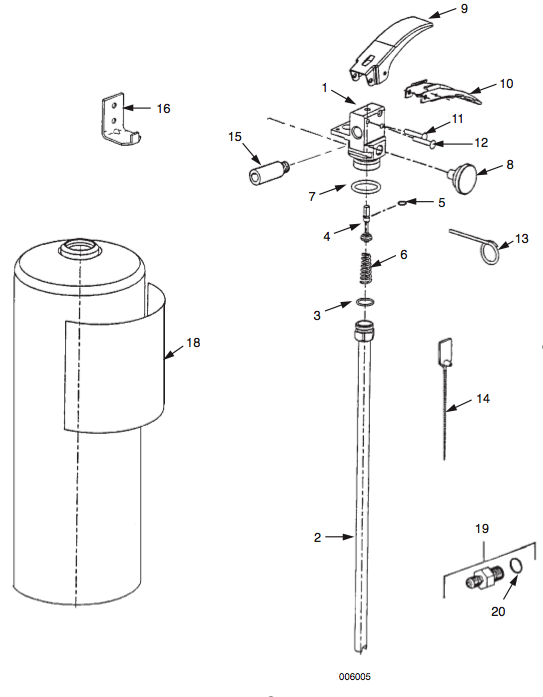

Fig No | Description | Part No |
— | Valve Assembly | 429083 |
1 | Valve Body, Machined | 428062 |
2 | Tube, Pick-Up | 428795 |
3 | O-Ring (Pick-up Tube) | 76076 |
4 | Valv Stem Assembly | 429099 |
5 | O-Ring | 11873 |
6 | Spring | 415565 |
7 | O-Ring | 428327 |
8 | Gauge, Pressure | 56776 |
9 | Lever, Operating | 429096 |
10 | Handle, Carrying | 429097 |
11 | Rivet, Operating Lever | 428130 |
12 | Rivet, Carrying Handle | 428130 |
13 | Pull Pin (Ring Pin) | 16235 |
14 | Seal, Visual Inspection | 25940 |
15 | Nozzle Tip Assembly, A02, A02VB | 428269 |
15 | Nozzle Tip Assembly, C02VB | 428270 |
16 | Hanger Hook, A02 | 21873 |
17 | Bracket Assembly, A02VB, C02VB | 24610 |
18 | Nameplate, Replacement w/o UL/ULC | webpage |
19 | Adaptor Assembly, Recharge | 429642 |
20 | O-Ring | 57744 |

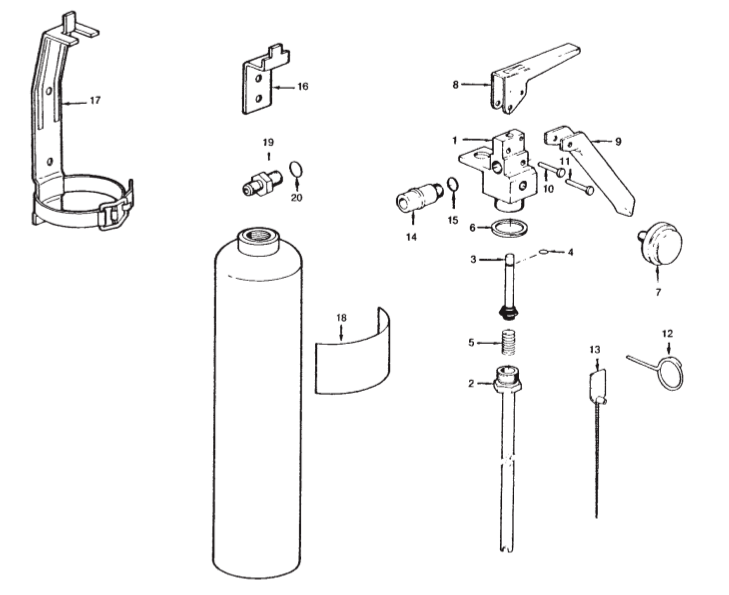

MODELS SY-0212, SY-0214, SY-0215, SY-0216, SY-0236
Fig No | Description | Part No |
— | Valve Assembly, SY-0212, 0214 | 24953 |
— | Valve Assembly SY-0215 | 68194 |
— | Valve Assembly, SY-0216, 0236 | 70223 |
1 | Valve Body, Machined, SY-0212, 0214, 0215 | 32575 |
1 | Valve Body, Machined, SY-0216, 0236 | 79117 |
2 | Tube, Pick-Up, SY-0212, 0214 | 21892 |
2 | Tube, Pick-Up, SY-0215 | 68186 |
2 | Tube, Pick-Up, SY-0216, 0236 | 79123 |
3 | Valve Stem Assembly (Metal) | 54227 |
4 | O-Ring | 11873 |
5 | Spring | 25702 |
6 | Quad Ring | 79122 |
7 | Gauge, Pressure | 56776 |
8 | Lever, Operating, Aluminum | 68169 |
9 | Handle, Carrying, Aluminum | 79119 |
10 | Rivet, Operating Lever, Aluminum | 25719 |
11 | Rivet, Carrying Handle, Aluminum | 25720 |
12 | Pull Pin (Ring Pin) | 16235 |
13 | Seal, Visual Inspection | 25940 |
14 | Nozzle Tip Assembly, SY-0212, 0214, 0215 | 27099 |
14 | Nozzle Tip Assembly, SY-0216 | 27099 |
14 | Nozzle Tip Assembly, SY-0236 | 78117 |
15 | O-Ring, Nozzle | 16047 |
16 | Hanger Hook, Except SY-0212, 0214 | 21873 |
17 | Bracket Assembly, Except SY-0215 | 24610 |
17 | Bracket Assembly, SY-0215 | 68309 |
18 | Nameplate, Oper & Maint w/o UL/ULC | webpage |
19 | Adaptor Assembly, Recharge | 25743 |
20 | O-Ring | 25791 |
— | Inspection Record Tag (Not Shown) | 2364 |

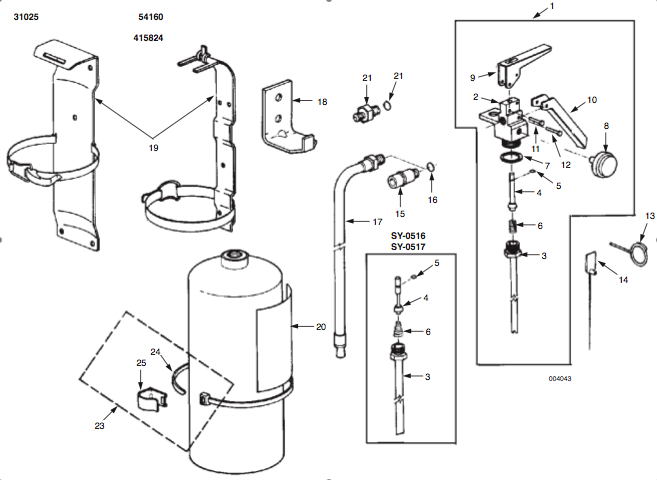

MODELS SY-0513, SY-0514, SY-0515, SY-0516, SY-0517, SY-052, SY-0531, SY-0613, SY-0614, SY-0623, SY-0624, SY-0633, SY-0635
Fig No | Description | Part No |
1 | Valve Assembly, SY-0513, 0514 | N/A |
1 | Valve Assembly, SY-0515 | N/A |
1 | Valve Assembly, SY-0516, 0517, 0521, 0531 | N/A |
2 | Valve Body, Machined, SY-0513, 0514, 0613, 0614, 0623, 0624, 0633, 0635 | N/A |
2 | Valve Body, Machined, SY-0515 | N/A |
2 | Valve Body, Machined, SY-0516, 0517, 0521, 0531 | N/A |
3 | Tube, Pick-Up, SY-0513, 0514 | N/A |
3 | Tube, Pick-Up, SY-0515 | N/A |
3 | Tube, Pick-Up, SY-0516, 0517, 0521, 0531 | N/A |
4 | Valve Stem Assembly (Metal), SY-0513, 0514, 0613, 0614, 0623, 0624 | 24489 |
4 | Valve Stem Assembly (Metal), SY-0516, 0517, 0521, 0531 | 415202 |
4 | Valve Stem Assembly (Metal), SY-0515, 0633, 0635 | 54227 |
5 | O-Ring (All) | 11873 |
6 | Spring, SY-0513, 0514, 0613, 0614, 0623, 0624 | 29256 |
6 | Spring, SY-0515, 0633, 0635 | 25702 |
6 | Spring, SY-0516, 0517, 0521, 0531 | 415565 |
7 | O-Ring, SY-0513, 0514, 0613, 0614, 0623, 0624 | 16222 |
7 | O-Ring, All Models Except SY-0513, 0514 | 79122 |
8 | Gauge, Pressure | 56776 |
9 | Lever, Operating (Aluminum), SY-0513, 0514 | 31793 |
9 | Lever, Operating (Aluminum), All Models Except SY-0513, 0514 | 68169 |
10 | Handle, Carrying (Aluminum), SY-0513, 0514 | N/A |
10 | Handle, Carrying (Aluminum), All Models Except SY-0513, 0514 | 79119 |
11 | Rivet, Operating Lever (Aluminum), SY-0513, 0514 | 17050 |
11 | Rivet, Operating Lever (Aluminum), All Models Except SY-0513, 0514 | 25719 |
12 | Rivet, Carrying Handle (Aluminum), SY-0513, 0514 | 17050 |
12 | Rivet, Carrying Handle (Aluminum), All Models Except SY-0513, 0514 | 25720 |
13 | Pull Pin (Ring Pin) | 16235 |
14 | Seal, Visual Inspection | 25940 |
15 | Nozzle Tip Assembly, SY-0513, 0514 | N/A |
15 | Nozzle Tip Assembly, SY-0515 w/o Hose | 54444 |
16 | O-Ring, Nozzle, SY-0515 w/o Hose | 16047 |
17 | Hose & Nozzle Assembly, SY-0515 | N/A |
17 | Hose & Nozzle Assembly, SY-0516 | N/A |
17 | Hose & Nozzle Assembly, SY-0517 | N/A |
17 | Hose & Nozzle Assembly, SY-0521 | N/A |
17 | Hose & Nozzle Assembly, SY-0531 | N/A |
18 | Hanger Hook, SY-0513, 0514 | 16819 |
18 | Hanger Hook, All Models Except SY-0513, 0514 | 54405 |
18 | Hanger Hook, SY-0614, 0623, 0624, 0633, 0635 | 16819 |
19 | Bracket Assembly, SY-0513, 0514 (while supplies last) | 31025 |
19 | Bracket Assembly, SY-0515 | 54160 |
19 | Bracket Assembly, SY-0516, 0517, 0521, 0531 | 415824 |
20 | Nameplate, Operation & Maintenance w/o UL | webpage |
21 | Adaptor Assembly, Recharge, SY-0513, 0514 | N/A |
21 | Adaptor Assembly, Recharge, SY-0516, 0517, 0521, 0531 | 415894 |
22 | O-Ring, SY-0513, 0514 | 6263 |
22 | O-Ring, SY-0515 | 25791 |
22 | O-Ring, SY-0516, 0517, 0521, 0531 | 28451 |
23 | Hose and Clip Assembly, All Models Except SY-0513, 0514 | 427995 |
24 | Locking Cable, All Models Except SY-0513, 0514, 0613, 0614, 0623, 0624 | 30636 |
25 | Clip, All Models Except SY-0513, 0514 | 427995 |
— | Inspection Record Tag (Not Shown) | 2364 |

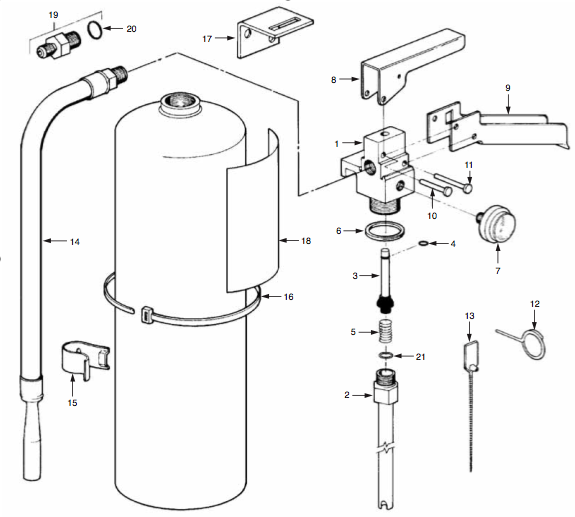

MODELS SY-1013, SY-1014, SY-1015, SY-1023, SY-1024, SY-1033, SY-1034, SY-2013, SY-2014, SY-2023, SY-2024, SY-2033, SY-2034
Part No | Description | Part No |
— | Valve Assembly, 10 lb Models Except SY-1015 | N/A |
— | Valve Assembly, SY-1015 | N/A |
— | Valve Assembly, 20 lb Models | N/A |
1 | Valve Body, Machined | N/A |
2 | Tube, Pick-Up, 10lb Models Except SY-1015 | N/A |
2 | Tube, Pick-Up, SY-1015 | N/A |
2 | Tube, Pick-Up, 20 lb Models | N/A |
3 | Valve Stem Assembly (Metal) | 24489 |
4 | O-Ring | 11873 |
5 | Spring | 29256 |
6 | Quad Ring | 16222 |
7 | Gauge, Pressure | 56776 |
8 | Lever, Operating | 31793 |
9 | Handle, Carrying | 78087 |
10 | Rivet, Operating Lever | 17050 |
11 | Rivet, Carrying Handle | 17050 |
12 | Pull Pin (Ring Pin) | 16235 |
13 | Seal, Visual Inspection | 25940 |
14 | Hose & Nozzle Assembly, SY-1013, 1014, 1015,1033, 1034 | 30615 |
14 | Hose & Nozzle Assy, SY-1023, 1024 | 30616 |
14 | Hose & Nozzle Assy, SY-2033, 2034 | 30617 |
14 | Hose & Nozzle Assy, SY-2023, 2024 | 30618 |
14 | Hose & Nozzle Assy, SY-2013, 2014 | 417510 |
15 | Hose Clip | 427995 |
16 | Locking Cable, 10 lb Models | 30636 |
16 | Locking Cable, 20 lb Models | 30935 |
17 | Hanger Hook, 10 lb Models except SY-1015 | 25298 |
17 | Hanger Hook, SY-1015 | 16819 |
17 | Hanger Hook, 20 lb Models | 30643 |
18 | Nameplate, Oper & Maint w/o UL | webpage |
19 | Adaptor Assembly, Recharge | 16246 |
20 | O-Ring | 6263 |
21 | O-Ring, Pick-Up Tube (Post 2/98) | 423822 |
— | Inspection Record Tag (Not Shown) | 2364 |

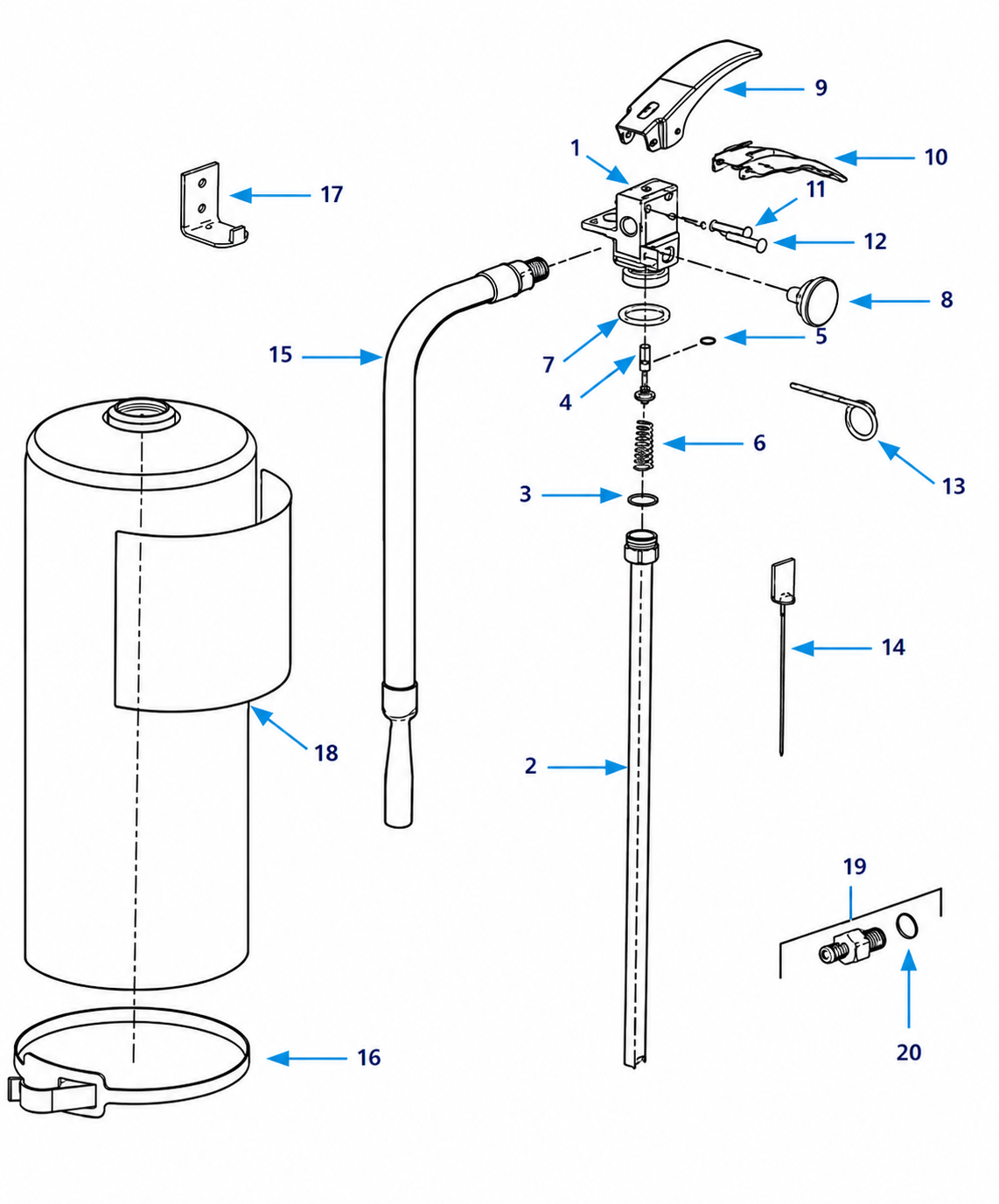

Fig No | Description | Part No |
— | Valve Assembly | 429084 |
1 | Valve Bofy, Machined | 428062 |
2 | Tube, Pick-Up | 428796 |
3 | O-Ring (Pick-Up Tube) | 76076 |
4 | Valve Stem Assembly | 429099 |
5 | O-Ring | 11873 |
6 | Spring | 415565 |
7 | O-Ring | 428327 |
8 | Gauge, Pressure | 56776 |
9 | Lever, Operating | 429096 |
10 | Handle, Carrying | 429097 |
11 | Rivet, Operating Lever | 428130 |
12 | Rivet, Carrying Handle | 428130 |
13 | Pull Pin (Ring Pin) | 16235 |
14 | Seal, Visual Inspection | 25940 |
15 | Hose & Nozzle Assy, A05 | 428728 |
15 | Hose & Nozzle Assy, AA05, AA05VB | 428729 |
15 | Hose & Nozzle Assy, PK05 | 428730 |
15 | Hose & Nozzle Assy, C05 | 428731 |
16 | Hanger Hook, AA05, PK05, A05, C05 | 54404 |
17 | Bracket Assembly AA05VB, A05VB | 429146 |
18 | Nameplate, Replacement w/o UL/ULC | webpage |
19 | Adaptor Assembly, Recharge | 429642 |
20 | O-Ring | 57744 |
21 | Hose Retainer, AA05, PK05, A05, C05 | 427995 |

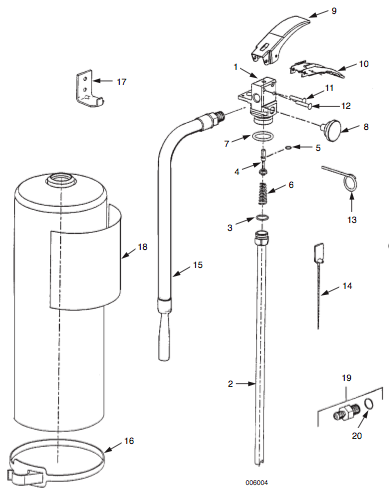

Fig No | Description | Part No |
— | Valve Assembly, 10 lb Models except A10T | 429085 |
— | Valve Assembly, A10T | 429086 |
— | Valve Assembly, 20 lb Models | 429087 |
1 | Valve Body, Machined | 428062 |
2 | Tube, Pick-Up, 10lb Models except A10T | 428797 |
2 | Tube, Pick-Up, A10T | 428798 |
2 | Tube, Pick-Up, 20 lb Models | 428799 |
3 | O-Ring (Pick-up Tube) | 76076 |
4 | Valve Stem Assembly | 429099 |
5 | O-Ring | 11873 |
6 | Spring | 415565 |
7 | O-Ring | 428327 |
8 | Gauge, Pressure | 56776 |
9 | Lever, Operating | 429096 |
10 | Handle, Carrying | 429097 |
11 | Rivet, Operating Lever | 428130 |
12 | Rivet, Carrying Handle | 428130 |
13 | Pull Pin (Ring Pin) | 16235 |
14 | Seal, Visual Inspection | 25940 |
15 | Hose & Nozzle Assy, A10T, A10H, C10 | 428732 |
15 | Hose & Nozzle Assembly, PK10 | 428734 |
15 | Hose & Nozzle Assembly, AA20 | 428736 |
15 | Hose & Nozzle Assembly, PK20 | 428738 |
15 | Hose & Nozzle Assembly, C20 | 428740 |
16 | Hose Retainer | 427995 |
17 | Hanger Hook | 428223 |
17 | Hanger Hook (A10T) | 428222 |
17 | Hanger Hook (AA20) | 428224 |
18 | Nameplate, Oper & Maint w/o UL/ULC | webpage |
19 | Adaptor Assembly, Recharge | 429642 |
20 | O-Ring | 57744 |
