View the parts for Red Line Mounting Brackets. Select the model you would like to see by clicking one of the following links, or scroll through the page to see all of the parts images.
 |
|

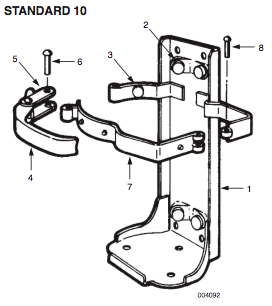

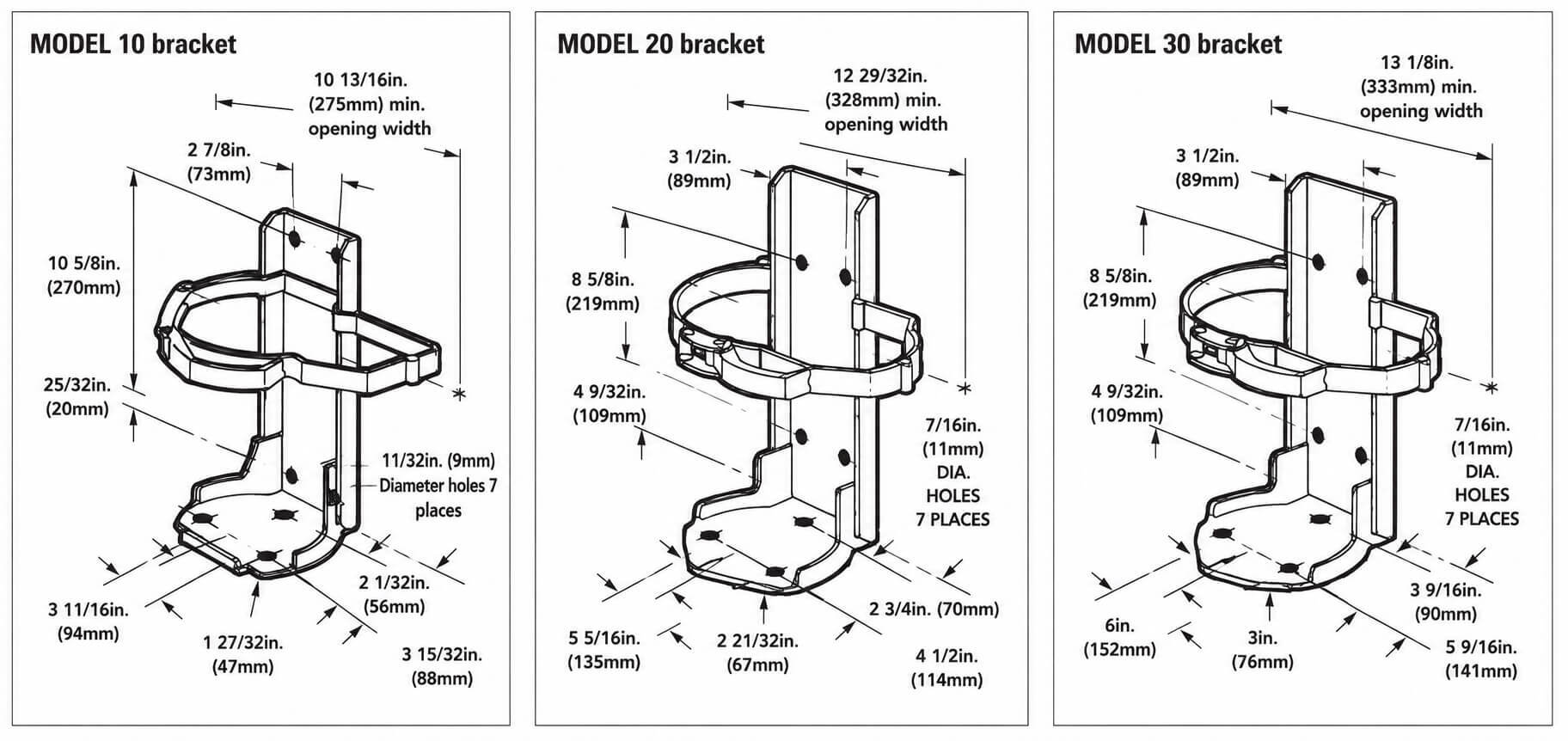

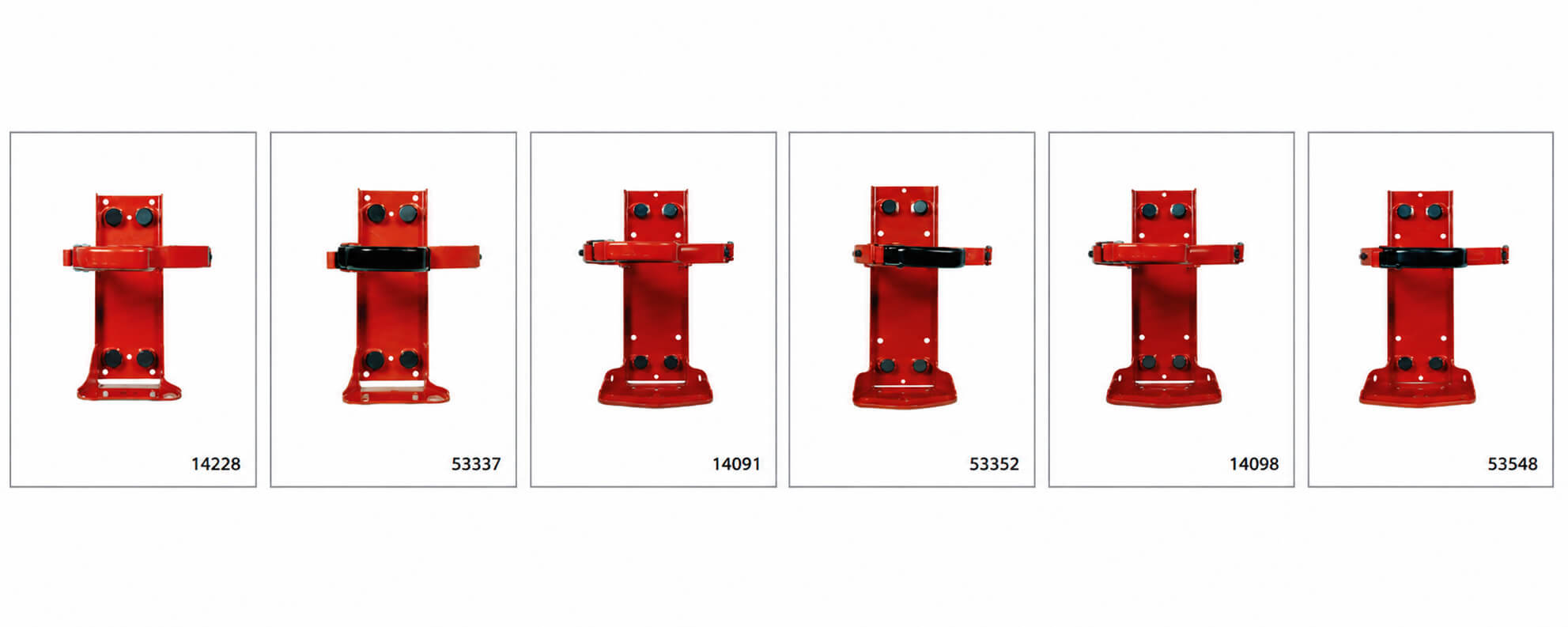

Fig
No
|
Description |
Part No |
| -- |
Bracket Shipping Assembly |
14091 |
| -- |
Bracket Shipping Assembly, CR |
53352 |
| -- |
Bracket Shipping Assembly, Ring Pin |
435364 |
| 1 |
Frame Assembly |
17056 |
| 1 |
Frame Assembly, CR |
53354 |
| 2 |
Grommet (4 Required) |
14089 |
| 3 |
Band "A" Finished |
16353 |
| 3 |
Band "A" CR Finished |
53359 |
| 4 |
Handle, Plated |
11629 |
| 4 |
Handle, CR |
53360 |
| 5 |
Link (2 Required), Plated |
11630 |
| 5 |
Link (2 Required), CR |
53656 |
| 6 |
Rivet (2 Required) |
11631 |
| 7 |
Grommet (5 Required) |
8688 |
| 8 |
Rivet |
15392 |
| 9 |
Band "B" |
6688 |
| 9 |
Band "B", CR |
53356 |
| 10 |
Link |
14088 |
| 10 |
Link, CR |
53357 |
| 11 |
Rivet |
2094 |
| 12 |
Ring Pin and Chain |
53597 |
|
|
|

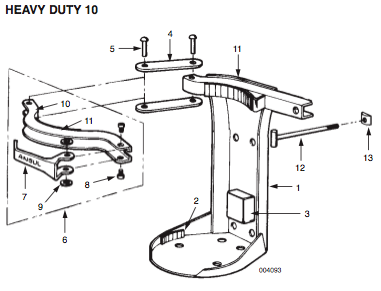

Fig
No
|
Description |
Part No |
| -- |
Bracket Shipping Assembly |
14098 |
| -- |
Bracket Shipping Assembly, CR |
53548 |
| -- |
Bracket Shipping Assembly, Ring Pin |
435255 |
| 1 |
Frame Assembly |
17057 |
| 1 |
Frame Assembly, CR |
23484 |
| 2 |
Grommet (4 Required) |
14089 |
| 3 |
Band "A" Finished |
16354 |
| 3 |
Band "A" CR Finished |
53655 |
| 4 |
Handle, Plated |
11629 |
| 4 |
Handle, CR |
53360 |
| 5 |
Link, Plated (2 Required) |
11630 |
| 5 |
Link (2 Required), CR |
53656 |
| 6 |
Rivet (2 Required) |
11631 |
| 7 |
Grommet (5 Required) |
8688 |
| 8 |
Rivet |
15392 |
| 9 |
Band "B" |
6722 |
| 9 |
Band "B", CR |
53653 |
| 10 |
Link |
14224 |
| 10 |
Link, CR |
53652 |
| 11 |
Rivet |
5094 |
| 12 |
Ring Pin and Chain |
53597 |
|
 |
|

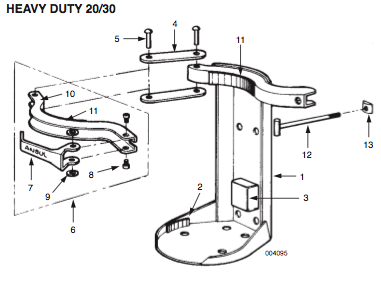

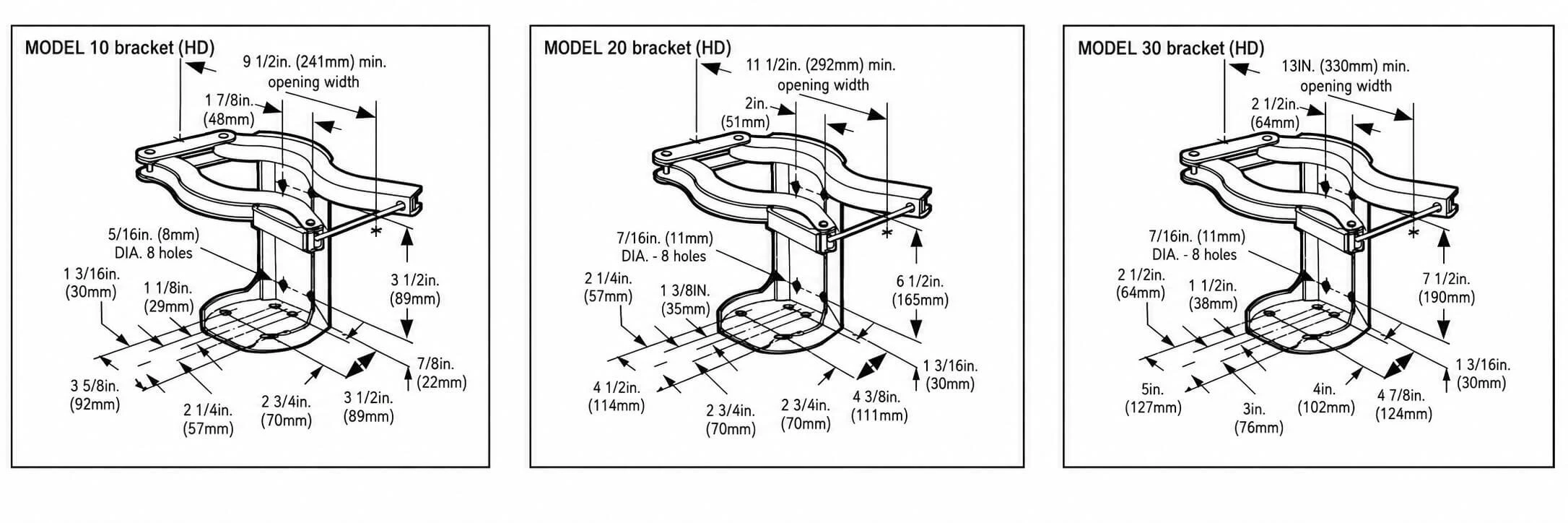

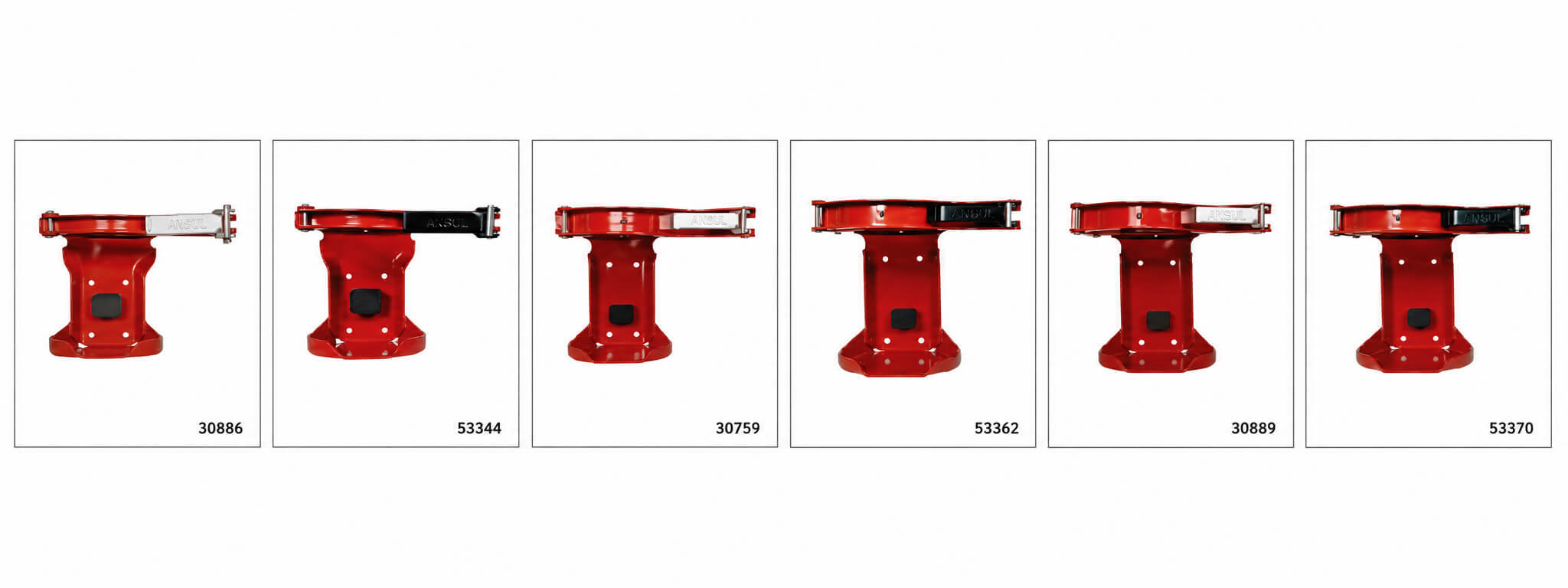

Fig
No
|
Description |
Part No |
| -- |
Bracket Shipping Assembly |
30886 |
| -- |
Bracket Shipping Assembly, CR |
53344 |
| 1 |
Frame Assembly, Back |
29734 |
| 1 |
Fram Assembly, Black, CR |
53346 |
| 2 |
Pad, Base (2) |
29415 |
| 3 |
Bumper |
29984 |
| 4 |
Link (2) |
29742 |
| 4 |
Link (2), CR |
53347 |
| 5 |
Rivet (2) |
29749 |
| 6 |
Handle Assembly |
29951 |
| 6 |
Handle Assembly, CR |
53348 |
| 7 |
Handle -- Cadmium Plated |
30479 |
| 7 |
Handle, CR |
53349 |
| 8 |
Screw (2) |
30282 |
| 9 |
Spacer (2) |
31153 |
| 10 |
Clamp Arm |
30480 |
| 10 |
Clamp Arm (2) |
53350 |
| 11 |
Pad, Clamp Arm (2) |
29748 |
| -- |
T-Bolt Assembly |
30975 |
| 12 |
T-Bolt |
30465 |
| 13 |
Nut, HD-10 Retainer |
57423 |
|
 |
|
Fig
No
|
Description |
Part No |
| -- |
Bracket Spring Assembly |
30759 |
| -- |
Bracket Spring Assembly, CR |
53362 |
| 1 |
Frame Assembly, Back |
30220 |
| 1 |
Frame Assembly, Back, CR |
53364 |
| 2 |
Pad, Base (2) |
29415 |
| 3 |
Bumper |
29985 |
| 4 |
Link (2) |
29610 |
| 4 |
Link (2), CR |
53365 |
| 5 |
Rivet (2) |
29416 |
| 6 |
Handle Assembly |
29942 |
| 6 |
Handle Assembly, CR |
53366 |
| 7 |
Handle |
29956 |
| 7 |
Handle, CR |
53367 |
| 8 |
Screw, Cap (2) |
30282 |
| 9 |
Spacer (2) |
31153 |
| 10 |
Clamp Arm |
29944 |
| 10 |
Clamp Arm, CR |
53368 |
| 11 |
Pad, Clamp Arm (2) |
31128 |
| -- |
T-Bolt Assembly |
30976 |
| 12 |
T-Bolt |
29958 |
| 13 |
Nut, HD-10 Retainer |
57424 |
|
|
|
Fig
No
|
Description |
Part No |
| -- |
Bracket Spring Assembly |
30889 |
| -- |
Bracket Spring Assembly, CR |
53370 |
| 1 |
Frame Assembly, Back |
30217 |
| 1 |
Frame Assembly, Back, CR |
53372 |
| 2 |
Pad, Base (2) |
29415 |
| 3 |
Bumper |
29985 |
| 4 |
Link (2) |
29408 |
| 4 |
Link (2), CR |
53373 |
| 5 |
Rivet (2) |
29416 |
| 6 |
Handle Assembly |
29919 |
| 6 |
Handle Assembly, CR |
53374 |
| 7 |
Handle |
29956 |
| 7 |
Handle, CR |
53367 |
| 8 |
Screw, Cap (2) |
30282 |
| 9 |
Spacer (2) |
31153 |
| 10 |
Clamp Arm |
29918 |
| 10 |
Clamp Arm, CR |
53375 |
| 11 |
Pad, Clamp Arm (2) |
29414 |
| -- |
T-Bolt Assembly |
30976 |
| 12 |
T-Bolt |
29958 |
| 13 |
Nut, HD-10 Retainer |
57424 |
|
