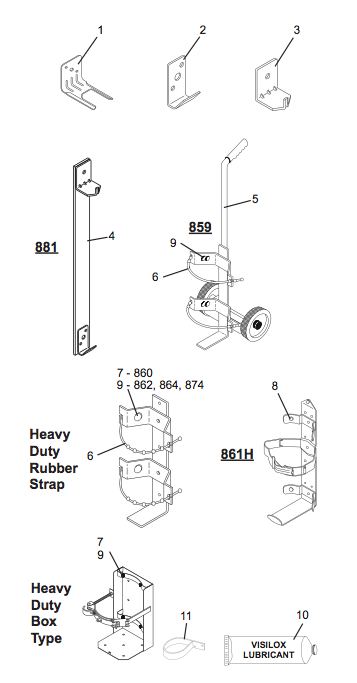

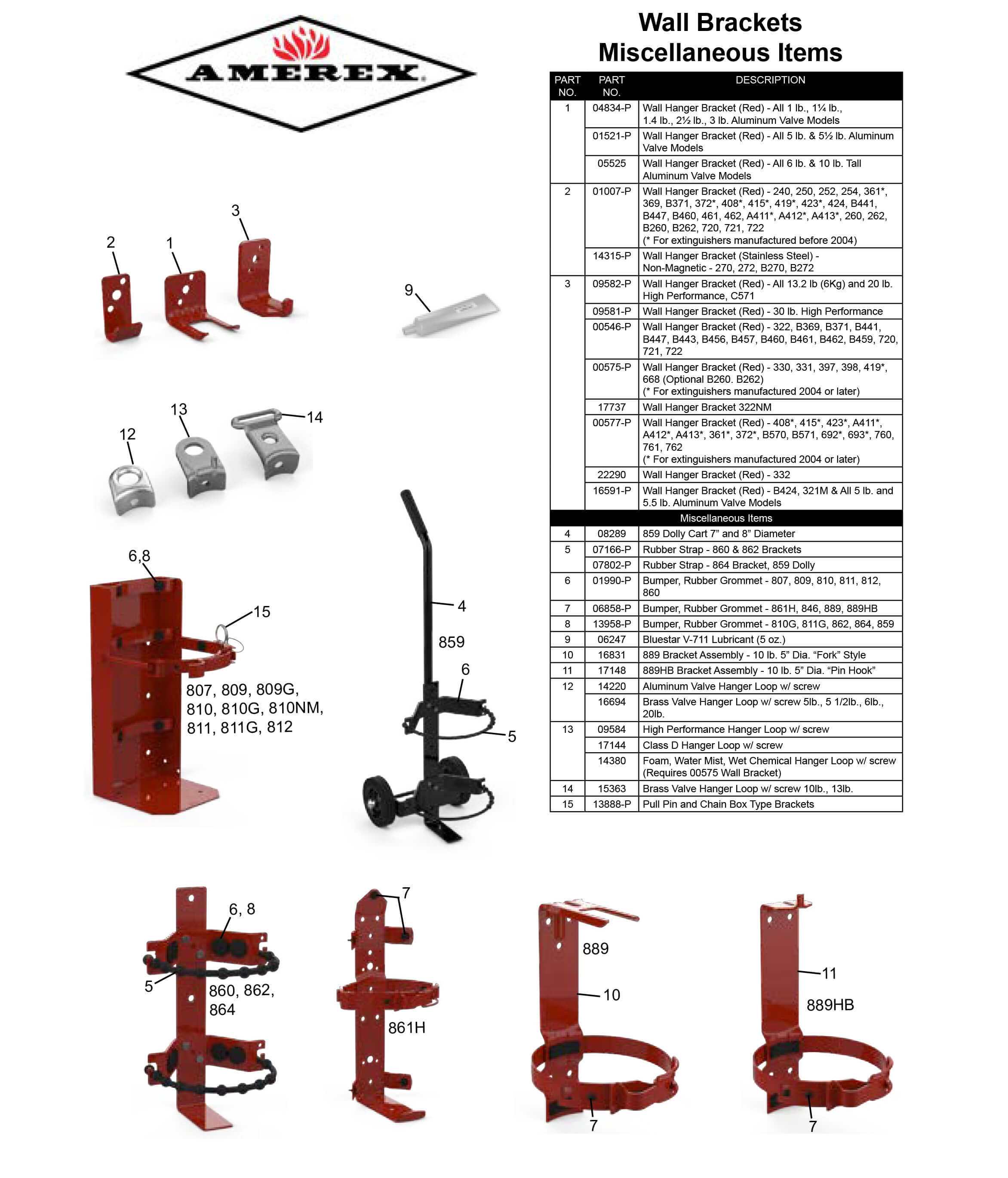

Fig No | Description | Part No |
1 | Wall Hanger Bracket (Red) - All 1 lb, 1¼ lb, 1.4 lb, 2½ lb, 3 lb Aluminum Valve Models | 4834 |
Wall Hanger Bracket (Red) - All 5 lb & 5½ lb Aluminum Valve Models | 1521 | |
Wall Hanger Bracket (Red) - All 6 lb & 10 lb Tall Aluminum Valve Models | 5525 | |
2 | Wall Hanger Bracket (Red) - 240, 250, 252, 254, 361*, 369, B371, 372, 408*, 415*, 419, 423, 424, B441, B447, B460, 461, 462, A411*, A412*, A413*, 260, 262, B260, B262 (*For extinguishers manufactured before 2004) |
1007 |
Wall Hanger Bracket (Stainless Steel) - Non-magnetic - 270, 272, B270, B272 | 14315 | |
3 | Wall Hanger Bracket (Red) - All 13.2 lb (6 kg) & 20 lb High Performance | 9582 |
Wall Hanger Bracket (Red) - 30 lb High Performance | 9581 | |
Wall Hanger Bracket (Red) - 322, B369, B441, B461, B462, B456, B457 | 0546 | |
Wall Hanger Bracket (Red) - 330, 331 | 0575 | |
Wall Hanger Bracket - 322NM | 17737 | |
Wall Hanger Bracket (Red) - 332, 408*, 415*, 423*, A411*, A412*, A413*, 361*, 372*, B570, B571 (*For extinguishers manufactured 2004 or later) |
0577 | |
Wall Hanger Bracket (Red) - B424 & All 5 lb Aluminum "HB" Models | 16591 | |
4 | Wall Hanger Bracket Two Point (Red) - Halotron 1 Models - 387, 388 | 14427 |
Wall Hanger Bracket Two Point (Red) - Halotron 1 Models - 397, 398 | 15573 | |
Miscellaneous Bracket Parts & Carts | ||
5 | Dolly Cart 7" Diameter | 859 |
6 | Rubber Strap - 860 & 862 Brackets | 7166 |
Rubber Strap - 864 & 874 Brackets, 859 Dolly | 7802 | |
7 | Bumper, Rubber Grommet - 807, 809, 810, 811, 812, 860 | 1990 |
8 | Bumper, Rubber Grommet - 861H, 887, 846 | 6858 |
9 | Bumper, Rubber Grommet - 810G, 811G, 862, 864, 874, 859 | 13958 |
-- | Adhesive, Silicon (3 oz) - Foot Stand - All Stainless Steel Extinguishers | 4488 |
10 | VISILOX Lubricant (5 oz) | 6247 |
11 | Horn Holder - 330, 331, 332 (Attaches for 810 & 811 Brackets) |
1427 |

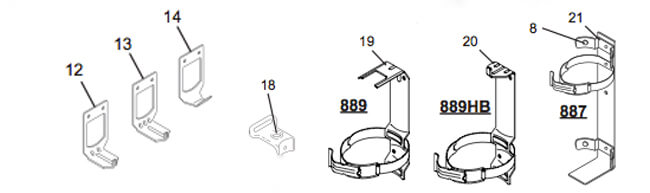

12 | Bracket Adapter - Cartridge Unit to Stored Pressure 6 kg & 20 lb High Performance | 16536 |
13 | Bracket Adapter - Cartridge Unit to Stored Pressure 30 lb High Performance | 16538 |
14 | Bracket Adapter - Cartridge Unit to Stored Pressure Standard "J" Hook Style Wall Bracket | 16537 |
18 | Hanger Loop Stainless Steel - 10 lb | 15363 |
19 | Bracket Assembly - 10 lb 5" Diameter "Fork" Style | 889 |
20 | Bracket Assembly - 10 lb 5" Diameter "Pin Hook" | 889HB |
21 | Vehicle Bracket (Red) - All 10 lb Tall Aluminum & Brass Valve Models | 887 |
