Select the model you would like to see by clicking one of the following links, or scroll through the page to see all of the parts images.
65 lb Stored Pressure Halotron 1 Wheeled Extinguisher
150 lb Stored Pressure Halotron 1 Wheeled Extinguisher

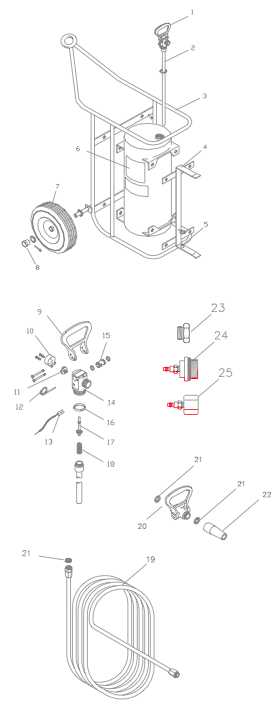

65 lb Stored Pressure Halotron 1 Wheeled Extinguisher
673 – 16″ Semi-Pneumatic Wheels
| Fig No | Description | Part No |
| 1 | Valve Assembly w/Downtube | 16661 |
| 2 | Downtube/Retainer Assembly | 04938 |
| 3 | Carriage Assembly w/o Wheels | 16724 |
| 4 | Hose Support w/Hardware | |
| 5 | Nozzle Mount w/Hardware | 06130 |
| 6 | Pictogram | 07481 |
| 7 | Wheel Assembly, 16″ w/Hubcap, Washer & Retaining Pin, Semi-Pneumatic | 07751 |
| 8 | Hubcap | 04945 |
| 9 | Valve Lever w/Screws | 06059 |
| 10 | Gauge Guard Assembly | 16723 |
| 11 | 100 psi Gauge | 14417 |
| 12 | Ring Pin, Stainless Steel w/Wire | 06100 |
| 13 | Tamper Seal (Yellow) | 01387 |
| 14 | Valve Body | 16666 |
| 15 | Cam Assembly w/O-Rings | 06060 |
| 16 | Collar O-Ring | 16664 |
| 17 | Valve Stem Assembly | 16668 |
| 18 | Spring | 03556 |
| 19 | Hose Assembly ¾ ft x 50 ft | 03501 |
| 20 | Ball Valve Assembly | 06279 |
| 21 | Gasket, Hose/Nozzle | 03877 |
| 22 | Nozzle Tip (.395) | 16659 |
| 23 | Hydrotest Adapter (Male Plug), Use w/09857 to Test 50 ft Hose Assembly | 05723 |
| 24 | Hydrotest Adapter (Cylinder) | 05152 |
| 25 | Recharge Adapter | 09857 |
| — | Visilox Lubricant (5 oz Tube) | 06247 |
Replacement valve assemblies include new valve body, gauge, gauge guard, cam lever, valve stem assembly, spring and downtube/retainer assembly.

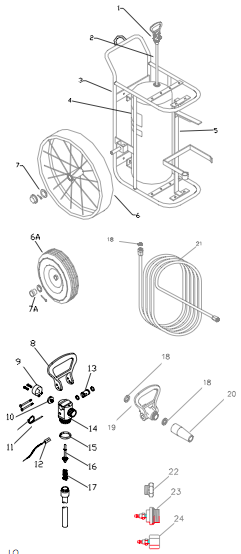

150 lb Stored Pressure Halotron 1 Wheeled Extinguisher
674 – 16″ Semi-Pneumatic Wheels
675 – 36″ x 6″ Wide Steel Wheels
| Fig No | Description | Part No |
| 1 | Valve Assembly w/Downtube | 16677 |
| 2 | Downtube/Retainer Assembly | 16726 |
| 3 | Carriage Assembly w/o Wheels | 16727 |
| 4 | Pictogram | 07481 |
| 5 | Hose Support Assembly w/Mounting Hardware | 16725 |
| 6 | Wheel Assembly – 36″ x 6″ – Red (675) | 07026 |
| 6A | Wheel Assembly – 16″ w/Hubcap, Washer & Retaining Pin – Semi-Pneumatic (674) | 07551 |
| 7 | Hubcap (Metal) w/Washer & Cotter Pin (675) | 07389 |
| 7A | Hubcap (Plastic) – (674) | 04945 |
| 8 | Valve Lever w/Screws | 06059 |
| 9 | Gauge Guard Assembly | 16723 |
| 10 | 125 psi Gauge | 14418 |
| 11 | Ring Pin, Stainless Steel w/Wire | 06100 |
| 12 | Tamper Seal (Yellow) | 01387 |
| 13 | Cam Assembly w/O-Rings | 06060 |
| 14 | Valve Body | 16666 |
| 15 | Collar O-Ring | 16664 |
| 16 | Valve Stem Assembly | 16668 |
| 17 | Spring | 16679 |
| 18 | Gasket – Hose/Nozzle | 03877 |
| 19 | Ball Valve Assembly | 06279 |
| 20 | Nozzle Tip (.687) | 16674 |
| 21 | Hose Assembly ¾” x 50 ft | 03501 |
| 22 | Hydrotest Adapter (Male Plug), Use w/09857 to test 50 ft Hose Assembly | 05723 |
| 23 | Hydrotest Adapter (Cylinder) | 05152 |
| 24 | Recharge Adapter | 09857 |
| — | Visilox Lubricant (5 oz Tube) | 06247 |
Replacement valve assemblies include new valve body, gauge, gauge guard, cam, lever, valve stem assembly, spring and downtube/retainer assembly.
