Wheeled Foam Extinguisher Parts

33 gal FFFP Foam 23 cu ft Nitrogen Cylinder Wheeled/Stationary Extinguisher

630, 631

33galFFFPFoam23cuftNitrogenCylinderWheeled:StaintionaryExtinguisherModels

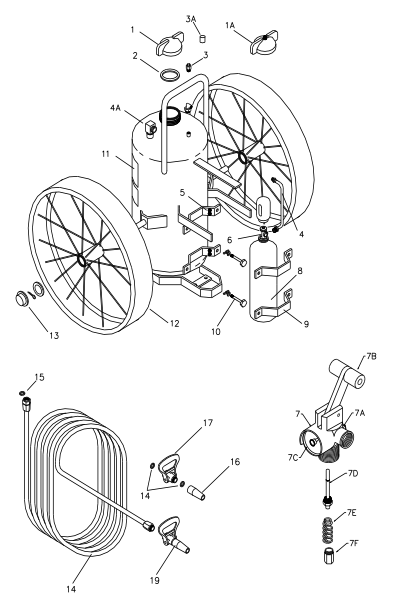

Fig No Description Part No
1 Cap, Agent Cylinder 06993
1A Cap, Agent Cylinder w/Pressure Indicator 12576
2 Gasket, Cap 02272
3 Safety Disc Assembly – 630 13956
Safety Disc Assembly – 631 07665
3A Protective Vinyl Cap 13956
4 Nitrogen Hose Assembly 07292
Nitrogen Tube Assembly 06883
4A Downtube Assembly 06784
5 Bumper, Rubber 13958
6 Lock Wire Seal (Yellow) 01387
7 Nitrogen Valve w/Gauge (“T” Handle Quick Release) 12467
7A Safety Disc, Gasket & Nut Assembly 16516
7B Valve Letter (“T” Handle – Complete) 06373
7C Gauge – 3000 psi 10213
7D Valve Stem Assembly 09897
7E Spring 12466
7F Retainer 09627
8 Nitrogen Cylinder (23 cu ft) – Charged, w/Cap 03817
9 Retaining Strap – Nitrogen Cylinder 04072
10 Bolt, Washer & Wing Nut 11970
11 Pictogram – 630, 631 07479
12 Wheel Assembly 36″ x 6″ (Red) 07026
Wheel Assembly 36″ x 6″ w/Rubber Tread 07607
13 Hub Cap w/Washer & Cotter Pin 07389
14 Hose Assembly – 50 ft 06814
15 Moisture Seal 07411
16 Gasket, Hose & Nozzle 03877
17 Ball Valve Assembly 06279
18 Nozzle Tip (Aerated) 06749
19 Nozzle Assembly (Ball Valve & Tip) 07560

For hydrotest adapters, view the Amerex Adapter page.
