Sentry Carbon Dioxide Extinguishers

SENTRY® CARBON DIOXIDE EXTINGUISHERS are designed to protect areas where Class B (flammable liquids and gases) or Class C (energized electrical equipment) fires could occur. They may be used indoors where winds and drafts do not affect discharge or where a clean extinguishing agent is required.

  • Nonconductive, noncorrosive clean extinguishing agent
  • Low carbon steel shell resists impact, vibration, and corrosion
  • Aluminum shell version is sturdy, yet lightweight
  • UL, ULC listed and USGC approved (up to 15 lb)
  • Six-year limited warranty

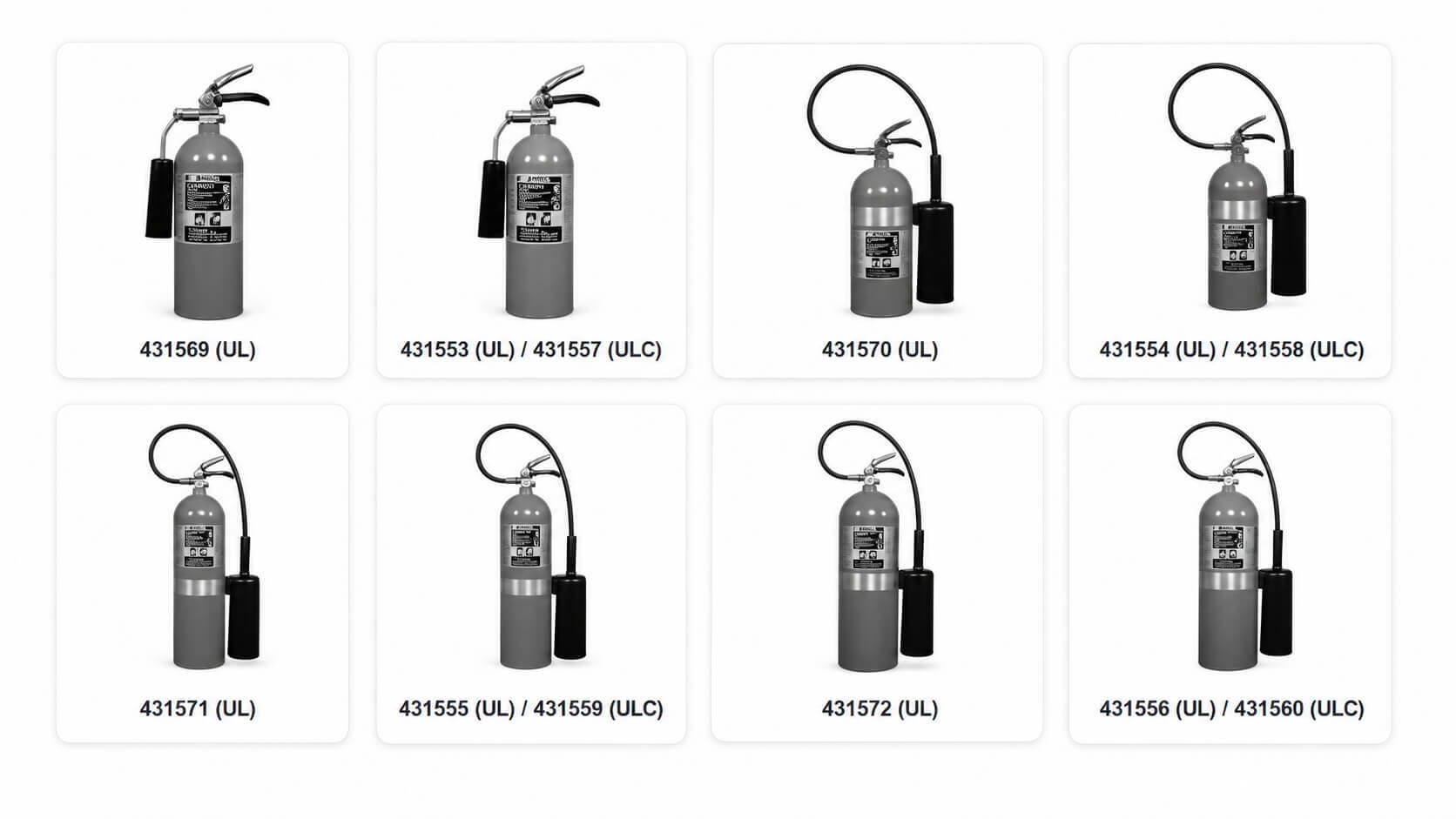

SentryCarbonDioxideExtinguishersCD05-1 SentryCarbonDioxideExtinguishersCD05A-1 SentryCarbonDioxideExtinguishersCD10-1 SentryCarbonDioxideExtinguishersCD10A-1
431569(UL) 431553(UL)
431557(ULC)
431570(UL) 431554(UL)
431558(ULC)
SentryCarbonDioxideExtinguishersCD15-1 SentryCarbonDioxideExtinguishersCD15A-1 SentryCarbonDioxideExtinguishersCD20-1 SentryCarbonDioxideExtinguishersCD20A-1
431571(UL) 431555(UL)
431559(ULC)
431572(UL) 431556(UL)
431560(ULC)



Model No CD05-1
(steel)
 CD05A-1
(aluminum)
 CD10-1
(steel)
 CD10A-1
(aluminum)
 CD15-1
(steel)
 CD15A-1
(aluminum)
 CD20-1
(steel)
 CD20A-1
(aluminum)
 Braket Part No 25419 25419 79456 79456 79456 79456 25420 25420
 Agent Capacity 5lb
(2.3kg)
5lb
(2.3kg)
10lb
(4.6kg)
10lb
(4.6kg)
15lb
(6.9kg)
15lb
(6.9kg)
20lb
(9.2kg)
20lb
(9.2kg)
 UL Rating 5-B:C 5-B:C 10-B:C 10-B:C 15-B:C 15-B:C 20-B:C 20-B:C
 ULC Rating   5-B:C   10-B:C   15-B:C   20-B:C
 Charged Weight
(with agent)
16-3/4lb
(7.6kg)
13-1/2lb
(6.1kg)
34lb
(15.4kg)
26-3/4lb
(12.1kg)
16-3/4lb
(7.6kg)
16-3/4lb
(7.6kg)
16-3/4lb
(7.6kg)
16-3/4lb
(7.6kg)
 Height in
(mm)
18-1/2
(470)
18-1/4
(464)
23-1/4
(591)
20-3/4
(527)
28
(711)
27-1/4
(692)
28
(711)
27-1/2
(699)
 Width in
(mm)
7-3/8
(187)
7-1/4
(184)
10-7/8
(276)
10-15/16
(278)
10-7/8
(276)
10-15/16
(278)
11-7/8
(302)
12
(305)
 Depth in
(mm)
6-5/16
(160)
5-11/32
(135)
6-7/8
(175)
7
(178)
6-7/8
(175)
7
(178)
7-29/32
(201)
8-3/32
(206)

More Information

SENTRY® Carbon Dioxide Extinguisher Data Sheet
SENTRY Carbon Dioxide Fire Extinguisher Parts Listing
If you have any questions about ordering these, or any other products, please feel free to call us at 1-800-498-FIRE (3473).
