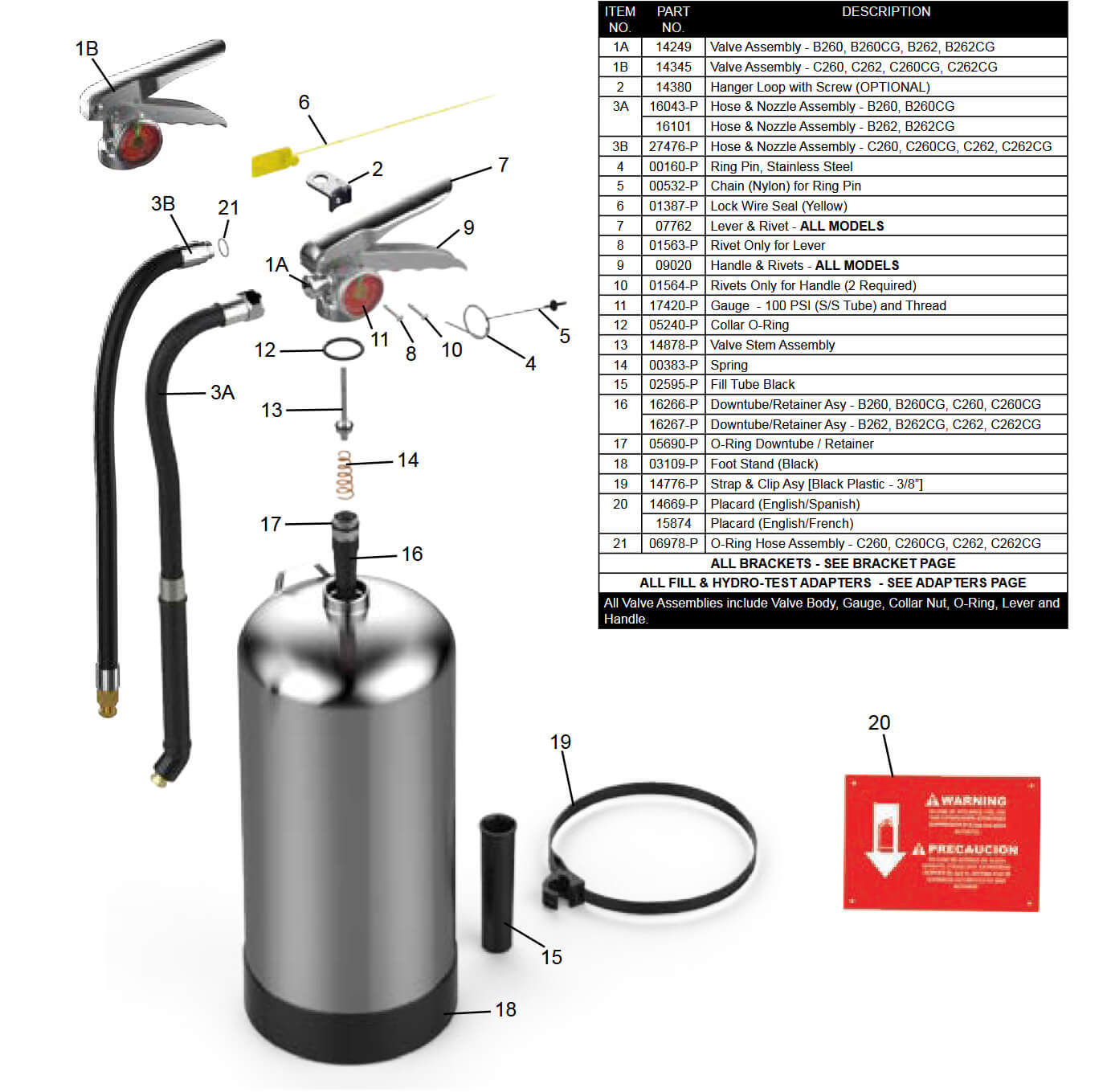

Hand Portable Wet Chemical Extinguisher Parts

6 Liter and 2½ Galon Wet Chemical Models

260, B260, 262, B262

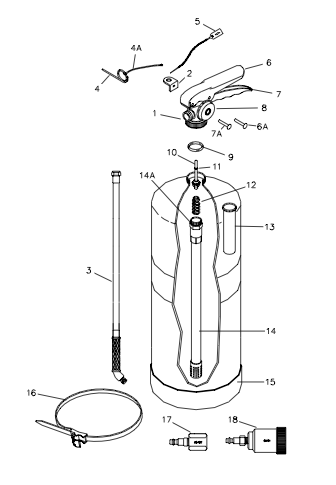

Amerex6Liter&21:2GalWetChemicalStoredPressureStainlessSteelExtinguishers(BrassValve)ModelsB260&B262

Fig No Description Part No
1 Valve Assembly 14249
2 Hanger Loop w/Screw (Optional) 14380
3 6L Hose Assembly 16043
2½ Hose Assembly 16101
4 Ring Pin, Stainless Steel 00160
4A Chain (Nylon) for Ring Pin 00532
5 Lock Wire Seal (Yellow) 01387
6 Lever & Rivet 07762
7 Rivet Only for Lever 09020
7A Rivet Only for Handle (2 Required) 01564
8 100 psi Pressure Gauge (Stainless Steel Tube) 17420
9 Collar O-Ring 05240
10 Valve Stem Assembly 14878
11 Valve Stem O-Ring 05243
12 Spring 00383
13 Fill Tube 02595
14 Downtube/Retainer Assembly 6L 16266
Downtube/Retainer Assembly 2½ Gal 16267
14A O-Ring – Downtube/Retainer 05690
15 Foot Stand (Black) 03109
16 Strap & Clip Assembly (Black Plastic) 3/8″ 14776
17 Fill (Pressurizing) Adapter 09492
18 Hydrotest Adapter 03181
Wall Bracket 01007
Adhesive (3 oz Tube for Foot Stand) 04488
Visilox Lubricant (5 oz Tube) 06247
Model 530-2 Wet Chemical Charge 6L 13503
Model 660 Wet Chemical Charge 2½ Gal 13815
Caution Placard English/Spanish 14669
Caution Placard English/French 15874

All valve assemblies include new valve body, pressure gauge, wing nut lever and handle.
