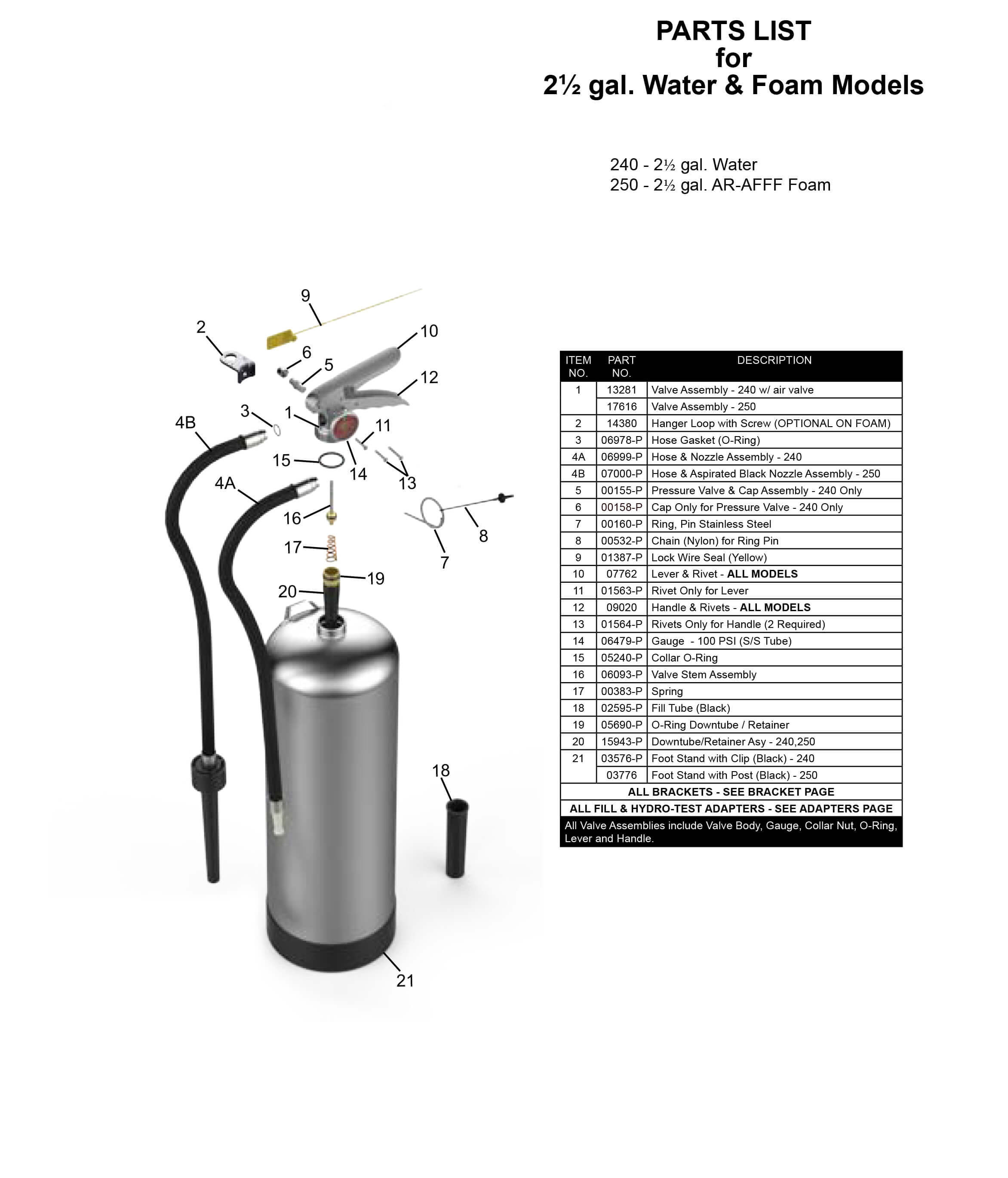

Hand Portable Water Extinguisher Parts

2½ Gallon Water Models

240

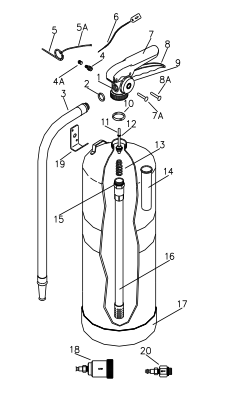

Amerex21:2GallonStainlessSteelStoredPressureWaterExtinguisher(BrassValve)Model240

Fig No Description Part No
1 Valve Assembly – 240 13281
2 Hose Gasket (O-Ring) 06978
3 Hose & Nozzle Assembly 06999
4 Pressure Valve & Cap Assembly – 240 Only 00155
4A Cap Only for Pressure Valve – 240 Only 00158
5 Ring Pin, Stainless Steel 00160
5A Chain (Nylon) for Ring Pin 00532
6 Lock Wire Seal (Yellow) 01387
7 Lever & Rivet 07762
7A Rivet Only for Lever 01563
8 Handle & Rivet 09020
8A Rivet Only for Handle (2 Required) 01564
9 Gauge 100 psi (Stainless Steel Tube) 06479
10 Collar O-Ring 05240
11 Valve Stem Assembly 06093
12 Valve Stem O-Ring 05243
13 Spring 00383
14 Fill Tube 02595
15 O-Ring – Downtube/Retainer 05690
16 Downtube/Retainer Assembly – 240 15943
17 Foot Stand w/Clip (Black) – 240 03576
18 Hydrotest Adapter 03181
19 Wall Bracket 01007
20 Pressurizing Adapter 02141
Model 506 Loaded Stream Anti-Freeze Charge – Model 240 Only 01928
Visilox Lubricant (5 oz Tube) 06247
Adhesive (Foot stand) 3 oz Tube 04488

All valve assemblies include new valve body, gauge, knurled nut, lever and handle and pressure valve.
