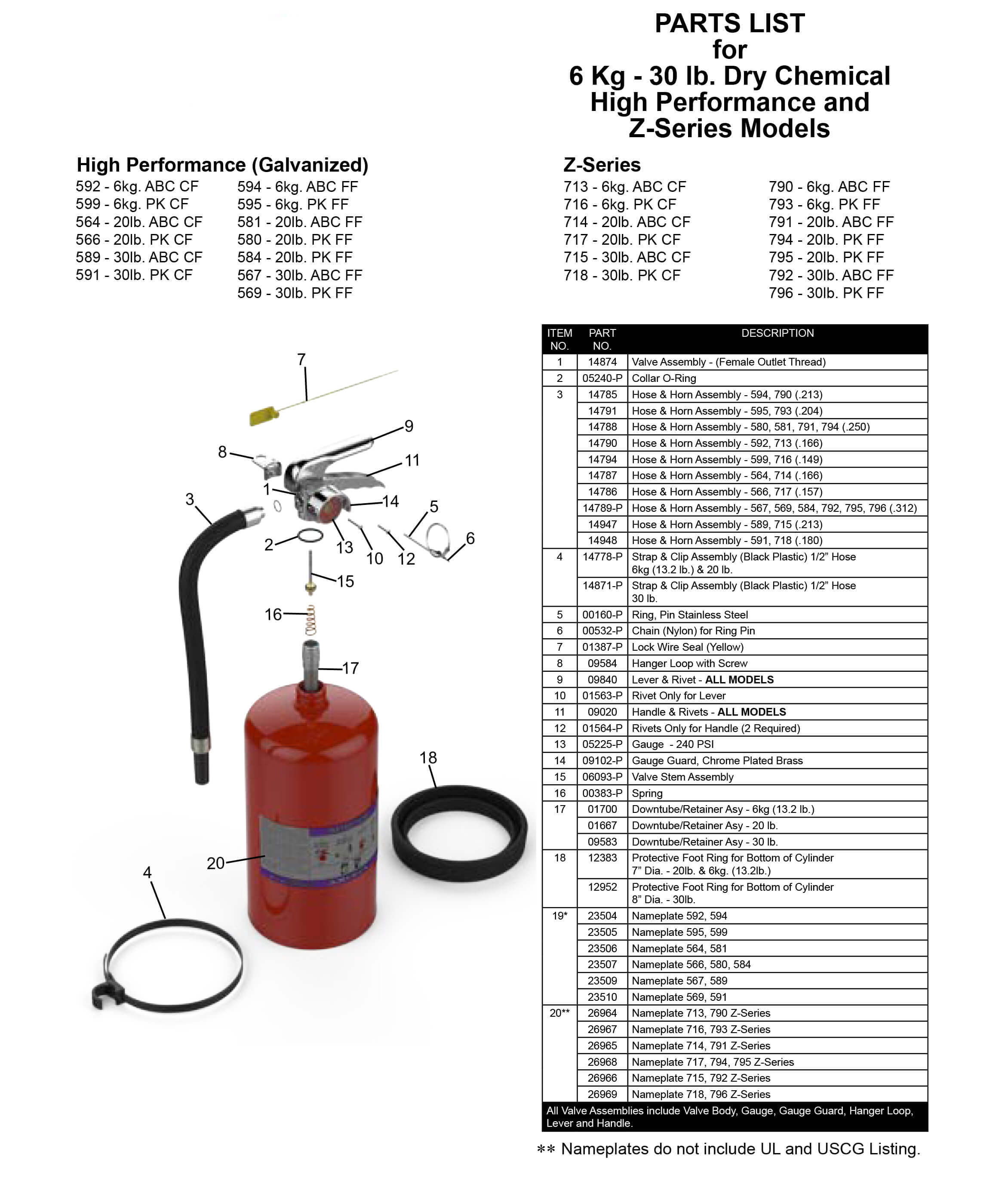

Hand Portable High Performance Extinguisher Parts

6 Kg – 30 lb Dry Chemical High Performance Models

594, 595, 581, 580, 584, 582, 567, 569, 568, 599, 564, 566, 589, 591, 592

Amerex6Kg-30lbDryChemicalHighPerformanceModels

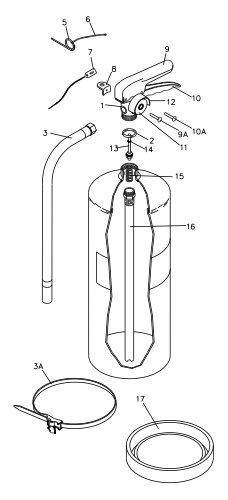

Fig No Description Part No
1 Valve Assembly – Female Thread 14874
2 Collar O-Ring 05240
3 Hose & Horn Assembly – 594 (.213) 14785
Hose & Horn Assembly – 595 (.204) 14791
Hose & Horn Assembly – 580, 581, 582 (.250) 14788
Hose & Horn Assembly – 592 (.166) 14790
Hose & Horn Assembly – 599 (.149) 14794
Hose & Horn Assembly – 564 (.166) 14787
Hose & Horn Assembly – 566 (.157) 14786
Hose & Horn Assembly – 567, 568, 569, 584 (.312) 14789
Hose & Horn Assembly – 589 (.157) 14947
Hose & Horn Assembly – 591 (.180) 14948
3A Strap & Clip Assembly (Black Plastic) ½” Hose 30 lb 14778
Strap & Clip Assembly (Black Plastic) ½” Hose 30 lb 14871
4 Hose Gasket (O-Ring) 06978
5 Ring Pin – Stainless Steel 00160
6 Chain (Nylon) for Ring Pin 00532
7 Lock Wire Seal (Yellow) 01387
8 Hanger Loop w/Screw 09584
9 Lever & Rivet – All Models 09840
9A Rivet Only for Lever 01563
10 Handle & Rivet – All Models 09020
10A Rivets Only for Handle 01564
11 Gauge – 240 psi 05225
12 Gauge Guard – Chrome Plated Brass 09102
13 Valve Stem Assembly 06093
14 Valve Stem O-Ring 05243
15 Spring 00383
16 Downtube/Retainer Assembly – 6 Kg 01700
Downtube/Retainer Assembly – 20 lb 01667
Downtube/Retainer Assembly – 30 lb 09583
17 Protective Foot Ring for Bottom of Cylinder – 7″ 12383
Protective Foot Ring for Bottom of Cylinder – 8″ 12952

For bracket information, view the Amerex Bracket page.
For fill and hydrotest adapters, view the Amerex adapter page.
Replacement valve assemblies include valve body, gauge, lever, valve stem assembly, spring, and handle.
