Hand Portable Foam Extinguisher Parts

6 Liter and 2½ Gallon Foam Models

250, 252, 254

AmerexModel2546LAFFFFoamModel25021:2GallonAFFFFoamModel25221:2GallonFFFPFoam

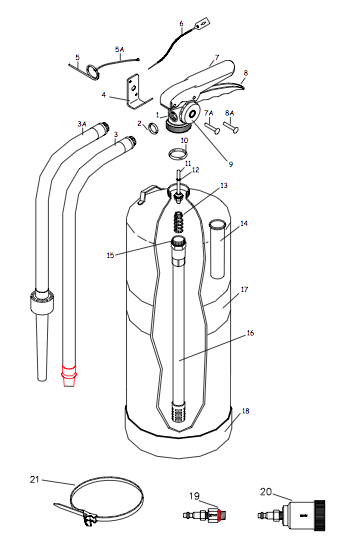

Fig No Description Part No
1 Valve Assembly – 250, 252, 254 14345
2 Hose Gasket (O-Ring) 06978
3 Hose & Spray Nozzle Assembly – 254 13162
3A Hose & Aspirated Nozzle Assembly – 250 07000
Hose & Aspirated Nozzle Assembly – 252 06982
4 Wall Bracket 01007
5 Ring Pin, Stainless Steel 00160
5A Chain (Nylon) for Ring Pin 00532
6 Lock Wire Seal (Yellow) 01387
7 Lever & Rivet 07762
7A Rivet Only for Lever 01563
8 Handle & Rivets 09020
8A Rivet Only for Handle (2 Required) 01564
9 100 psi Gauge (Stainless Steel Tube) 06479
10 Collar O-Ring 05240
11 Valve Stem Assembly 06093
12 Valve Stem O-Ring 05243
13 Spring 00383
14 Fill Tube 02595
15 Downtube O-Ring 05690
16 Downtube/Retainer Assembly – 254 02581
Downtube/Retainer Assembly – 250, 252 02209
17 Nameplate (Label) Non-UL Specify Extinguisher Model No
18 Foot Stand w/Post (Black) – 250, 252 03776
Foot Stand (Black) – 254 03109
19 Pressurizing Adapter 02141
20 Hydrotest Adapter 03181
21 Strap & Clip – 254 14776
Model 502 AFFF Premix Charge – 250, 254 02117
Model 504 FFFP Premix Charge – 252 06981
Adhesive (Foot Stand) 3 oz Tube 04488
Visilox Lubricant 5 oz Tube 06247

All valve assemblies include new valve body, gauge, knurled nut, lever and handle.
