1-6 lb Dry Chemical (Fixed Nozzle) Aluminum Valve Models
A/B/C403, 416, 425, 409, A/B416, A/B459, A/B409, 417, A620,A/B410, A/B417
5-30 lb Fry Chemical Brass Valve Models
408, B441, 461, 415, 447, B461, 419, B447, 462, 423, 460, B462, 424, B460, 692, B424, 693

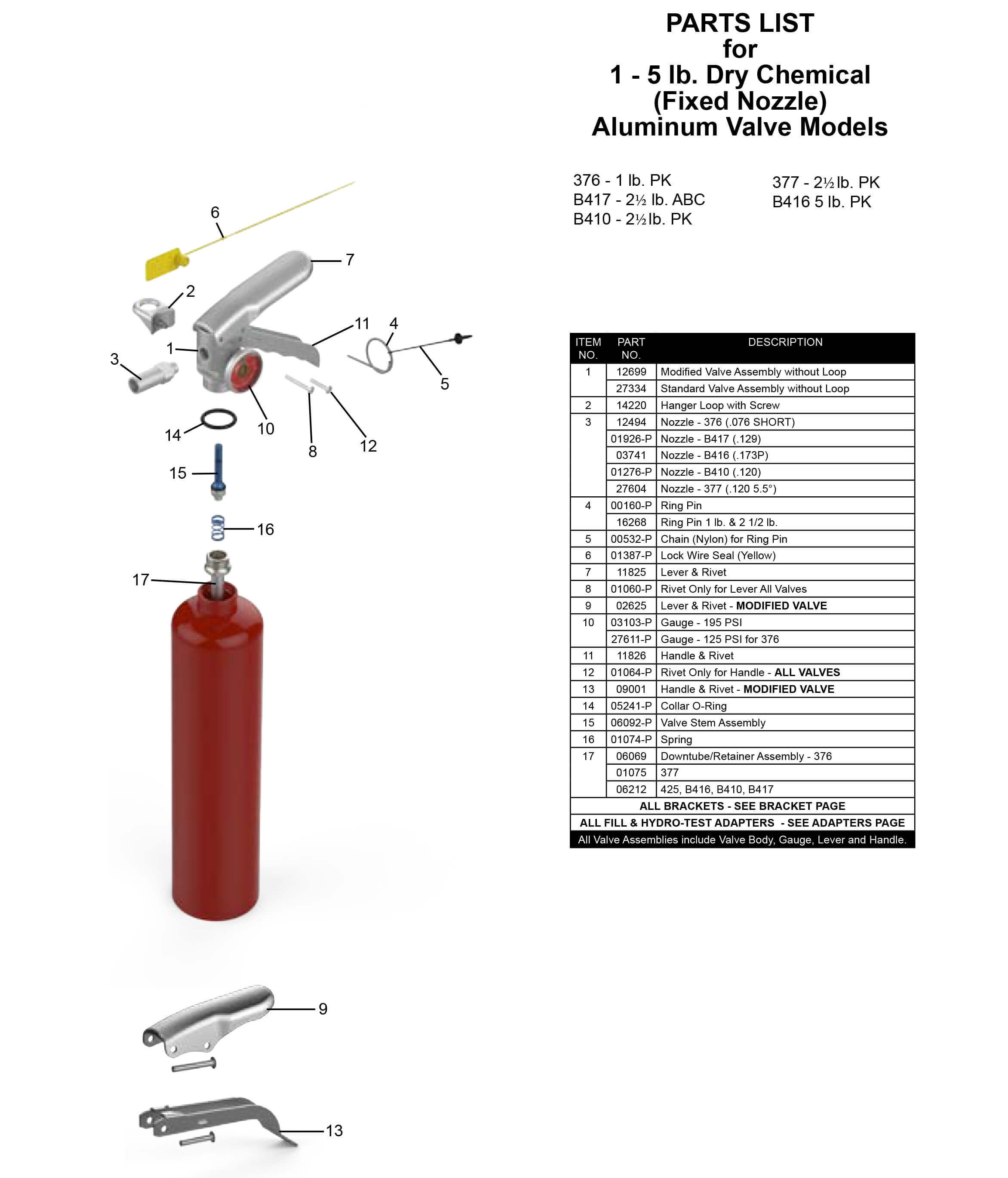

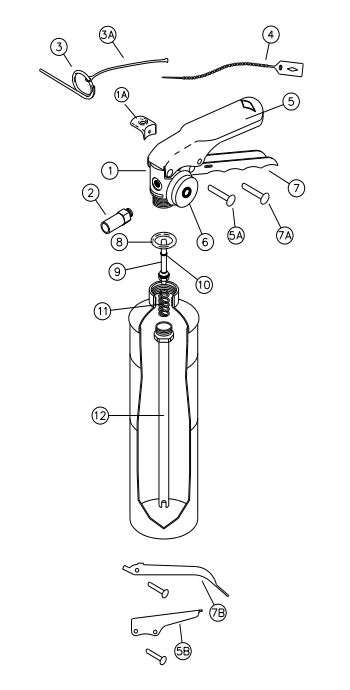

1-6 lb Dry Chemical (Fixed Nozzle) Aluminum Valve Models
A/B/C403, 416, 425, 409, A/B416, A/B459, A/B409, 417, A620,A/B410, A/B417
Fig No
| Description | Part No | |
| 1 | Valve Assembly – A620 | 12699 |
| Valve Assembly – All Other Models | 11823 | |
| 1A | Hanger Loop w/Screw (Optional) | 14220 |
| 2 | Nozzle – A620T (.076 Short) | 12494 |
| Nozzle – 417, A/B417 (.129) | 01926 | |
| Nozzle – 409, 416T, A/B409, A/B416 (.173P) | 03741 | |
| Nozzle – 403, A/B403 (.120ST) | 03211 | |
| Nozzle – 410, A/B410 (.120) | 01276 | |
| Nozzle – 425 (.166) | 01253 | |
| Nozzle – 459 (.144) | 03353 | |
| 3 | Ring Pin | 01412 |
| Ring Pin 1 lb & 2½ lb | 16353 | |
| 4 | Lock Wire Seal (Yellow) | 01387 |
| 5 | Lever & Rivet “A/B” Valve | 11825 |
| 5A | Rivet Only for Lever Old & A/B Valve | 01060 |
| 5B | Lever & Rivet – A620 | 06067 |
| Lever & Rivet – Forged Valve | 02625 | |
| 6 | Gauge – 100 psi for A620 | 08184 |
| Gauge – 195 psi | 03103 | |
| 7 | Handle & Rivet “A/B” Valve | 11826 |
| 7A | Rivet Only for Handle – All Valves | 01064 |
| 7B | Handle & Rivet – A620 | 09001 |
| Handle & Rivet – 2½ & 5 lb – Forged Valve | 09002 | |
| Handle & Rivet – 6 lb – Forged Valve | 09003 | |
| 8 | Collar O-Ring | 05241 |
| 9 | Valve Stem Assembly | 06092 |
| 10 | Valve Stem O-Ring | 05235 |
| 11 | Spring | 01074 |
| 12 | Downtube/Retainer Assembly – A620 | 06060 |
| Downtube/Retainer Assembly – 417, C403, 403, 410, A417, A403, A410 | 01075 | |
| Downtube/Retainer Assembly – 409, 425, 416, A/B409, B403, B410, B417, A/B416 | 06212 | |
| Downtube/Retainer Assembly – 459 | 03397 |
For bracket information, view the Amerex Bracket page.
For fill and hydrotest adapters, view the Amerex Adapter page.
All valve assemblies include valve body, gauge, lever, and handle.

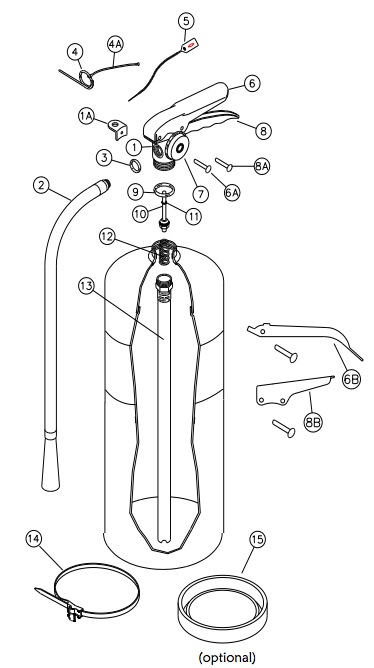

5-20 lb Dry Chemical (Hose & Horn) Aluminum Valve Models
400, 443, A/B457, A400, A/B443, 479, A/B402, 453, A/B479, A411, A/B453, 500, A412, 456, A/B500, A413, B456
Fig No
| Description | Part No | ||
| 1 | Valve Assembly – 5, 5½, 6 & 10 lb | 11823 | |
| Valve Assembly – 20 lb | 11824 | ||
| 1A | Hanger Loop w/Screw (Optional) | 14220 | |
| 2 | Hose & Horn Assembly – 400, A400 (.149) | 07641 | |
| Hose & Horn Assembly – A/B402 (.157) | 14849 | ||
| Hose & Horn Assembly – 453, A/B453, A/B500 (.147) | 06215 | ||
| Hose & Horn Assembly – 479, 500, 443, A/B479, A/B443 (.152) | 05248 | ||
| Hose & Horn Assembly – 456, A/B456, A/B456, A/B457 (.191) | 05564 | ||
| Hose & Horn Assembly – B456x (.166) | 06541 | ||
| Hose & Horn Assembly – B459x (.136) | 08759 | ||
| Hose & Horn Assembly – A411 (.209) | 11221 | ||
| Hose & Horn Assembly – A411x (.221) | 11658 | ||
| Hose & Horn Assembly – A412, A413 (.177) | 11223 | ||
| 3 | Hose Gasket (O-Ring) – All 5, 6, & 10 lb | 01532 | |
| Hose Gasket (O-Ring) – A411, A412, A413 | 06978 | ||
| 4 | Ring Pin | 01412 | |
| 4A | Chain (Nylon) for Ring Pin | 00532 | |
| 5 | Lockwire Seal (Yellow) | 01387 | |
| 6 | Lever & Rivet – A400, A/B402, A/B453, A/B479, A/B500, A/B 443, A/B456, A/B457 | 11825 | |
| 6A | Rivet Only for Lever – Old & “A” Valve | 01060 | |
| 6B | Lever & Rivet – 400, 453, 479, 443, 456 | 02625 | |
| 7 | Gauge – 195 psi | 03103 | |
| 8 | Handle & Rivet – 400, A/B402, A/B453, A/B479, A/B500, A/B443, A/B456, A/B457 | 11826 | |
| Handle & Rivet – A411, A412, A413 | 12405 | ||
| 8A | Rivet Only for Handle – All 5-10 lb | 01064 | |
| Rivet Only for Handle – A411, A412, A413 | 12201 | ||
| 8B | Handle & Rivet – 453, 479, 500 | 09002 | |
| Handle & Rivet – 400, 443, 456 | 09003 | ||
| 9 | Collar O-Ring | 05241 | |
| 10 | Valve Stem Assembly | 06092 | |
| 11 | Valve Stem O-Ring | 05235 | |
| 12 | Spring | 01074 | |
| 13 | Downtube/Retainer Assembly – 456, A/B456, A/B457 | 01519 | |
| Downtube/Retainer Assembly – A411, A412, A413 | 11674 | ||
| Downtube/Retainer Assembly – A/B402, 453, 479, 500, A/B453, A/B479, A/B500 | 06212 | ||
| Downtube/Retainer Assembly – 400, 443, A400, A/B443 | 03397 | ||
| 14 | Strap & Clip Assembly (Black Plastic-3/8″ Hose) All 5-10 lb | 15747 | |
| Strap & Clip Assembly (Black Plastic-½” Hose) All 20 lb | 14778 | ||
| 15 | Protective Ring for Bottom of Cylinder-7″ | 12383 | |

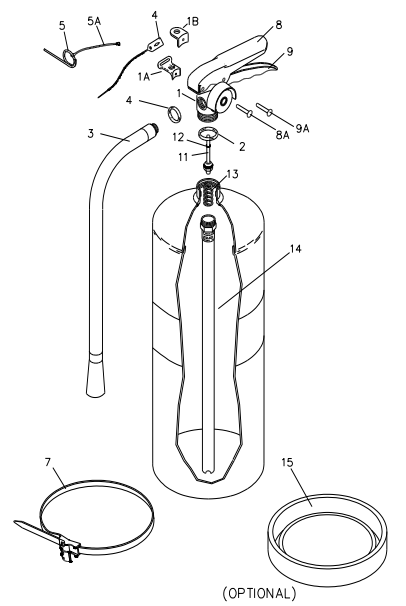

408, B441, 461, 415, 447, B461, 419, B447, 462, 423, 460, B462, 424, B460, 692, B424, 693
