View the parts for Sentry Dry Chemical Extinguishers.
Select the model you would like to see by clicking one of the following links, or scroll through the page to see all of the parts images.

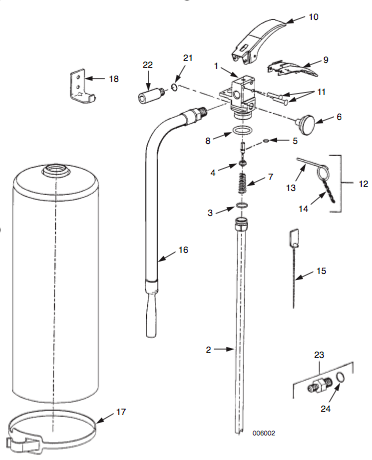

Fig No | Description | Part No |
| — | Valve Assembly, FE02VB | 429090 |
| — | Valve Assembly, FE05 | 429091 |
| — | Valve Assembly, FE09 | 429092 |
| — | Valve Assembly FE13 | 429093 |
| 1 | Valve Body, Anodized | 429100 |
| 2 | Tube, Pick-Up FE02VB | 428795 |
| 2 | Tube, Pick-Up FE05 | 428796 |
| 2 | Tube, Pick-Up FE09 | 428797 |
| 2 | Tube, Pick-Up FE13 | 428799 |
| 3 | O-Ring | 76076 |
| 4 | Valve Stem Assembly (includes O-Ring) | 429099 |
| 5 | O-Ring | 11873 |
| 6 | Gauge, FE02VB, FE05 | 426264 |
| 6 | Gauge, FE09, FE13 | 428743 |
| 7 | Spring | 415565 |
| 8 | O-Ring | 428327 |
| 9 | Handle, Finished | 429097 |
| 10 | Push Lever, Finished | 429096 |
| 11 | Rivet (2) | 428130 |
| 12 | Ring Pin/Chain Assembly | 16234 |
| 13 | Ring Pin | 16235 |
| 14 | Chain | 507 |
| 15 | Seal Visual Inspection | 25940 |
| 16 | Hose & Nozzle Assembly, FE05 | 428742 |
| 16 | Hose & Nozzle Assembly, FE09, FE13 | 428743 |
| 17 | Hose Retainer, FE05, FE09, FE13 | 427995 |
| 18 | Hanger Bracket, FE05 | 54405 |
| 18 | Hanger Bracket, FE09, FE13 | 428224 |
| 19 | Nameplate, Replacement w/o UL?ULC Approval | Nameplates |
| 20 | Vehicle Bracket (Not Shown) | 24610 |
| 21 | O-Ring | 57744 |
| 22 | Pyro-Chem 553328 2F Nozzle, (1 Pc.) HP Kit | 553328 |
| 23 | Adaptor Assembly, Recharge | 429642 |
| 24 | O-Ring | 57744 |
MODEL NMFE13
Fig No | Description | Part No |
| — | Valve Assembly | 432896 |
| 1 | Valve Body, Plated | 428434 |
| 2 | Tube, Pick-Up | 432897 |
| 3 | O-Ring | 76076 |
| 4 | Valve Stem Assembly (includes O-Ring) | 428431 |
| 5 | O-Ring | 11873 |
| 6 | Gauge | 428940 |
| 7 | Spring, SS | 430004 |
| 8 | O-Ring | 428327 |
| 9 | Handle, SS | 428429 |
| 10 | Push Lever, SS | 428428 |
| 11 | Rivet (2), Brass | 428430 |
| 12 | Ring Pin/Chain Assembly | 432947 |
| 13 | Ring Pin, SS | 429290 |
| 14 | Chain | 507 |
| 15 | Seal, Visual Inspection | 25940 |
| 16 | Hose & Nozzle Assembly | 432948 |
| 17 | N/A | |
| 18 | Hanger Bracket, SS | 432964 |
| 19 | Nameplate Replacement w/o UL/ULC approval | 432893 |

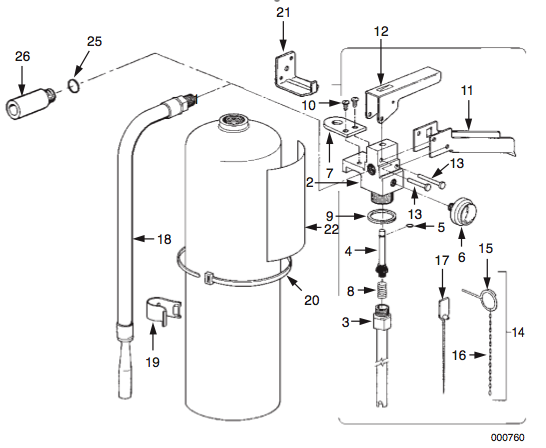

MODELS CA-0281, CA-0581, CA-0582
Fig No | Description | Part No |
| 1 | Valve Assembly, CA-0281 | N/A |
| 1 | Valve Assembly, CA-0581 | N/A |
| 1 | Valve Assembly, CA-0582 | N/A |
| 2 | Valve Body, Anodized, CA-0281, 0582 | N/A |
| 2 | Valve Body, Anodized, CA-0581 | N/A |
| 3 | Tube, Pick-Up, CA-0281 | N/A |
| 3 | Tube, Pick-Up, CA-0581 | N/A |
| 3 | Tube, Pick-Up, CA-0582 | N/A |
| 4 | Valve Stem Assembly, CA-0281, 0582 | 415202 |
| 4 | Valve Stem Assembly, CA-0581 | 24489 |
| 5 | O-Ring | 11873 |
| 6 | Gauge, CA-0281, 0582 | 426264 |
| 6 | Gauge, CA-0581 | 428940 |
| 7 | Conversion Hanger, CA-0581 | 21864 |
| 8 | Spring, CA-0281, 0582 Fig. | 415565 |
| 8 | Spring, CA-0581 | 29256 |
| 9 | Quad Ring, CA-0281, 0582 | 79122 |
| 9 | Quad Ring, CA-0581 | 21882 |
| 10 | Screw, Self-Tapping (2) | 28589 |
| 11 | Handle, Finished, CA-0281, 0582 | 79119 |
| 11 | Handle, Finished, CA-0581 | 78087 |
| 12 | Push Lever, Finished, CA-0281, 0582 | 68169 |
| 12 | Push Lever, Finished, CA-0581 | 31793 |
| 13 | Rivet (2) , CA-0281, 0582 | 25720 |
| 13 | Rivet (2) , CA-0581 | 17050 |
| 14 | Ring Pin/Chain Assembly, CA-0581 | 16234 |
| 15 | Ring Pin, CA-0581 | 16235 |
| 16 | Chain, CA-0581 | 507 |
| 17 | Seal, Visual Inspection | 25940 |
| 18 | Hose and Nozzle Assembly, CA-0581 | N/A |
| 18 | Hose and Nozzle Assembly, CA-0582 | N/A |
| 19 | Hose Clip, CA-0581, 0582 | 427995 |
| 20 | Locking Cable, CA-0581, 0582 | 427995 |
| 21 | Hanger Bracket, CA-0281 | 21873 |
| 21 | Hanger Bracket, CA-0581 | 79356 |
| 21 | Hanger Bracket, CA-0582 | 54405 |
| 22 | Nameplate, Replacement w/o UL/ULC | |
| 23 | Inspection Record Tag (Not Shown) Except CA-0581 ULC | 2364 |
| 23 | Inspection Record Tag (Not Shown) CA-0581 ULC | 31447 |
| 24 | Vehicle Bracket (Not Shown), CA-0281 | 24610 |
| 24 | Vehicle Bracket (Not Shown), CA-0581 UL | 30865 |
| 24 | Vehicle Bracket (Not Shown), CA-0581 ULC | 32820 |
| 24 | Vehicle Bracket (Not Shown), CA-0582 | 415824 |
| 25 | O-Ring, CA-0281 | 16047 |
| 26 | Nozzle, CA-0281 | 428686 |
| — | Recharge Adaptor | 429642 |
MODELS CA-0681, CA-0981, CA-1081, CA-1081, CA-1381, CA-1481, CA-1481
| Fig No | Description | Part No |
| 1 | Valve Assembly, CA-0681, 0981, 1081 | N/A |
| 1 | Valve Assembly, CA-1381, 1481 | N/A |
| 2 | Valve Body, Anodized | N/A |
| 3 | Tube, Pick-Up | N/A |
| 4 | Valve Stem Assembly | 24489 |
| 5 | O-Ring | 11873 |
| 6 | Gauge | 428940 |
| 7 | Conversion Hanger | 21864 |
| 8 | Spring | 29256 |
| 9 | Quad Ring | 21882 |
| 10 | Screw, Self-Tapping (2) | 28589 |
| 11 | Handle, Finished | 78087 |
| 12 | Push ever, Finished | 31793 |
| 13 | Rivet (2) | 17050 |
| 14 | Ring Pin/Chain Assembly | 16234 |
| 15 | Ring Pin | 16235 |
| 16 | Chain | 507 |
| 17 | Seal, Visual Inspection | 25940 |
| 18 | Hose & Nozzle Assembly, CA-0681 | N/A |
| 18 | Hose & Nozzle Assembly, CA-0981 | N/A |
| 18 | Hose & Nozzle Assembly, CA-1081 | N/A |
| 18 | Hose & Nozzle Assembly, CA-1381, 1481 ULC | N/A |
| 18 | Hose & Nozzle Assembly, CA-1481 | N/A |
| 19 | Hose Clip | 427995 |
| 20 | Locking Cable | 30636 |
| 21 | Hanger Bracket, CA-0681 | 79357 |
| 21 | Hanger Bracket, Except CA-0681 | 79356 |
| 22 | Nameplate, Replacement w/o UL App. | |
| 23 | Inspection Record Tag (Not Shown), CA-1081 ULC | 31447 |
| 23 | Inspection Record Tag (Not Shown), except CA-1081 ULC | 2364 |
| 24 | Vehicle Bracket (Not Shown), CA-0681 | 30865 |
| 24 | Vehicle Bracket (Not Shown), CA-0981, 1081 | 422737 |
| 24 | Vehicle Bracket (Not Shown), CA-1381, 1481 | 30937 |
